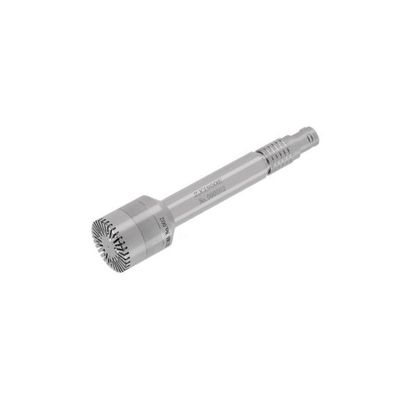

Zxonic Family PrePolarized - Model 1012 -1 Inch Pressure-Field Microphone, 10 Hz - 8 kHz
Type 1012 is designed for low-level, pressure-field measurements. The 1012 Series has low noise floors of 7.5 dB, and is compatible with CCLD and classical preamplifiers. The Type 1012 Series are high sensitivity, pre-polarized, 1″ pressure-field microphone sets. Designed for low-level measurements, the 1012 Series offers a dynamic range from 7.5 to 137 dB.
Assembly
Each unit is assembled in a clean-room environment to ensure high-quality performance and minimal contamination. Both the microphone and preamplifier are individually labeled with a printed type number and a unique serial number for traceability.
TEDS
The unit is equipped with TEDS (Transducer Electronic Data Sheet) functionality, allowing important information—such as type number, serial number, and sensitivity—to be stored directly within the device for seamless identification and system integration.
- Frequency response characteristics: Pressure-field
- Polarization voltage [V]: CCLD, Classical
- Sensitivity [mV/Pa]: 89.1 mV/Pa
- Lower limiting frequency: 10 Hz
- Higher limiting frequency: 8 kHz
- Cartidge thermal noise: 7.5 dB(A)
- Dynamic range: 7.5 - 137 dB(A)
- Diameter: 1 inch
- Venting: Side
- Operating temperature range: -30 - 60 ℃ (-22 to 212 °F)
