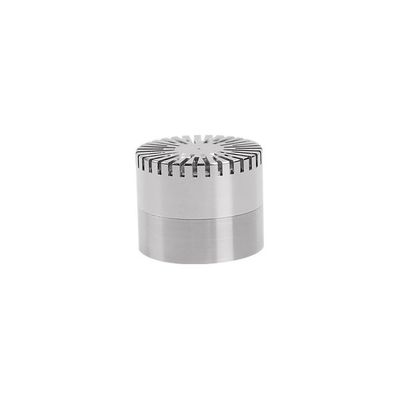

Zxonic PrePolarized - Model Type 1012 -1 Inch Pressure-Field Microphone
Type 1012 pressure-field microphone designed for high-precision coupler measurements. Being prepolarized, Type 10012 is compatible with both TEDS enabled and classical preamplifiers.
Most popular related searches
pressure-field microphone
pressure field microphone
sound level meter
microphone cartridge
acoustic transducer
sound meter
Type 1012 pressure-field microphone designed for high-precision coupler measurements.
- Dyn. range : 7.5 – 137 dB
- Freq. range : 10 – 8000 Hz
- Polarization : 0 V
- Sensitivity : 89.1 mV/Pa
- Standards : IEC 61094-4 WS2P
Typical Use Cases
- Precision coupler measurement
- Premium class ANSI sound level meters
- General random incidence measurements
- Standard: IEC 61672
- Frequency reponse characteristics: Pressure-field
- Polarization voltage [V]: 0
- Sensitivity [mV/Pa]: 89.1 mV/Pa
- Lower limiting frequency: 10 Hz
- Higher limiting frequency: 8 kHz
- Cartidge thermal noise: 7.5 dB(A)
- Dynamic Range: 7.5 - 137 dB(A)
- Diameter: 1 inch
- Venting: Side
- Operating temperature range: -30 - 80
- Operating humidity range: 0 - 100% RH without condensation
