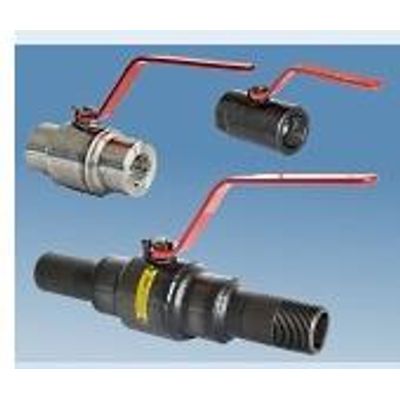

Kitz - Model HB / SB-80 -1-Piece Body Construction Full or Reduced Bore Valve
Standards: Design: EN 1983/B16.34 y BS EN12516 (HB Class 900) • Test: BS6755 P1 • FSM: (HB) API 607- ISO 10497. Connections: NPT thread: Ansi B1.20.1 • BSP thread: ISO228. SW: Ansi B16.5 y B16.34 (HB Class 1500 -2500. BW: SW + Nipples Sch 40-80 (Ansi B 16.25).
Most popular related searches
Features
- Antistatic device
- Blowout-proof stem
- High performance PTFE ball seats
Standards
- Ball valves are designed according to EN 1983/B16.34
Connections
- NPTthread: ANSI Bl.20.1
- BSP thread: IS0228
- BW (only one side): Nipple Sch 40-80 (Ansi B16.25), Screwed (other side)
- SW:ASMEB16.5
