Coretaker - Model B-40404 - Max -1-Piece Sludge Sampler System

Coretaker Max Features

• Link Release Mega Valve takes up the heavy sludge and slams shut when full
• Shepherd`s hook keeps valve open for flushing from clean end at top
• Made in USA of USA materials for industrial applications
• Check valve has two internal O-rings to prevent leaking and sample loss
• UHMW black polyethylene valve is CNC machined
• Water rated numbered markers for accurate measurements
• Available as a 2-piece unit with Slip Lock Coupler and Link Release Mega Valve
• 2-Piece models come with carrying case

Coretaker Max Specs

• Clear Tube Material:
• polycarbonate with ultra violet stabilizer to inhibit oxidation
• diameter: 1.50 inch (38.1mm) all models
• wall thickness: 1/16 or .0625 inch (1.59mm)

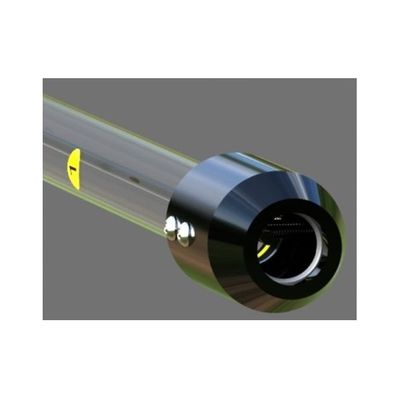

• Check Valve Fitting:
• CNC machined black UHMW plastic
• length: 4 inches (127mm)
• max diameter: 2.5 inch (63.5mm)
• inside diameter at sample entry: 1.25 inches (31.75mm)
• functionality: fixed female with 2 internal O-rings and internal check ball actuated by internal linkage
• Markings:
• black numbers on yellow background factory applied
