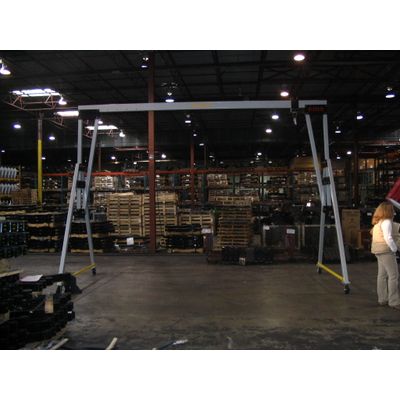

eme - Model 2200 -1 Ton Aluminum Gantry Crane
The erne 2200 series, a 1 ton aluminum Gantry Cran with a maximum lift capacity of 2,200 lbs comes in a wide range of beam lengths and heights. All eme Gantry Cranes are adjustable for both beam height and clear span. We`ve developed an extensive portfolio of aluminum Gantry Crane designs and can customize o* eme 2200 for your specific requirements.
eme 2200 Gantry Crane Models
All products are designed and tested to meet or exceed regulatory requirements and to focus on operator safety
Our products are designed to be intuitive, easy to use and operate without the need for complex rigging equipment or machinery
Our innovative designs can easily be moved under load or transported to off-site locations, minimizing the need for redundant equipment that can consume limited floor space
- Maximum Lift capacity of 2,200 lbs
- Lift Range of 66-90 inches
- Standard Beam length of 8 feet
- Maximum Beam Length of 26 feet
- Locking ‘surround-beam’ trolley
- Assembled weight of 270 lbs
- Load tested to 150% prior to shipment, exceeding OSHA standard
- Mated 4-way locking casters
- Beam height & clear span adjustments
- Grade L9 plated fasteners
- Easy grip handles for height adjustment
- Aluminum billet handles on beam for easy carrying
- Welding performed by Certified Shop
- Maximum Lift capacity of 2,200 lbs
- Lift Range of 82-122 inches
- Standard Beam length of 10 feet
- Maximum Beam Length of 26 feet
- Locking ‘surround-beam’ trolley
- Assembled weight of 300 lbs
- Load tested to 150% prior to shipment, exceeding OSHA standard
- Mated 4-way locking casters
- Beam height & clear span adjustments
- Grade L9 plated fasteners
- Easy grip handles for height adjustment
- Aluminum billet handles on beam for easy carrying
- Welding performed by Certified Shop
- Maximum Lift capacity of 2,200 lbs
- We can customize minimum and maximum lift height, beam length, clear span, caster width, along with a number of other features
- We’ve optimized our designs to be easily customized, fitting our exact customer needs in an expedited manner. So don’t worry, custom doesn’t mean radically different pricing vs our standard models or lengthy delivery times.
Operators use the eme 2200 in a wide variety of settings, solving a broad range of lifting problems in the 2,200 lbs class. Operators have leveraged our lightweight aluminum Gantry Crane to navigate low overhead environments, lift tall loads, maintain infrastructure, navigate tight entry ways using the eme Split-Beam, and lifting Helicopter transmissions. The eme 2200 is an indispensable tool for moving 2,200 lbs (1T) loads.
