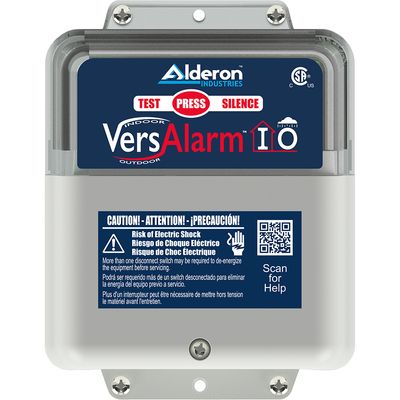

Alderon VersAlarm I/O - 1-Zone Indoor and Outdoor Rated Alarm Panel
The VersAlarm™ I/O 1-Zone Alarm is an indoor and outdoor rated alarm panel, powered by 120VAC or 230VAC with conduit connections (required). When powered, the green LED will illuminate inside the top cover of the enclosure to indicate the unit is powered on. This alarm can be used for a wide variety of applications, including but not limited to: septic tanks, sump pits, holding tanks, pump chambers, and water tanks. Available in 120VAC or 230VAC models. The alarm panel is equipped with audible and visual alarm indication, activated by a field installed sensor. A variety of sensors can be used such as a float switch, pressure switch, or any "dry" type sensor that "closes" during an alarm condition (normally open or normally closed). Use the auxiliary contacts to connect to building automation systems (BAS) and phone dialers.
During an alarm condition, the red alarm LEDs will illuminate, flashing and the buzzer will annunciate. The alarm condition will stay on until the sensor is deactivated. If the test/silence pushbutton is pressed during an alarm condition, it will silence the buzzer and the red alarm LEDs will stop flashing and remain solid. The silence condition will reset when the sensor deactivates. If the alarm is in silence mode for longer than 24 hours, the alarm will reactivate.
- Primary Power: 120VAC or 230VAC, 50/60 Hz (voltage depends on model/part number)
- Power: 2.64 Watts maximum (alarm condition)
- Auxiliary Contacts: 24VDC at 0.5 Amps maximum
- Enclosure: Type 3R, Indoor and Outdoor
- Certifications: FCC Part 15 (US and Canada) and CSA (US and Canada)
- Three-Year Limited Warranty: We guarantee our products operate correctly and offer a 3-year warranty on all standard catalog products.
