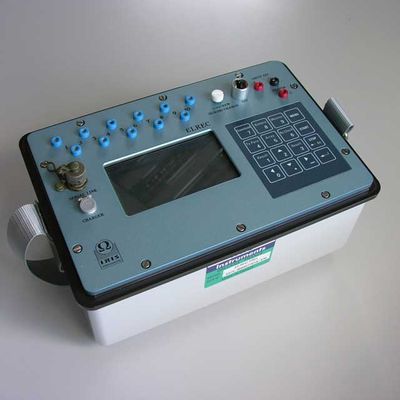

IRIS - Model Elrec Pro -10 Channel Induced Polarisation (IP) and Resistivity Receiver

SHARE

The Elrec Pro is a 10 channel Induced Polarisation (IP) and Resistivity receiver designed to improve productivity when recording deep profiles and soundings. Beside the classical arithmetic and logarithmic modes, ELREC Pro also offers a Cole-Cole mode and twenty fully programmable windows for a higher flexibility in the definition of the IP decay curve. A setup wizard guides the operator through each parameter to ensure the instrument is configured correctly. The system includes built-in quality control tools to aid the operator validate measurements during data acquisition, and displays IP decay curves in real time.

Most popular related searches
water table characteristics
environment monitor
hazard detection
mineral exploration
water table
environmental monitoring
waste disposal
groundwater contamination monitoring
leak detection monitoring
pollution monitoring

The Elrec Pro is designed for use with the TIPIX and VIP high-power transmitters’ series. The Elrec automatically synchronizes (and re-synchronizes at each new pulse) with the transmission signal, through the waveform recognition process, ensuring high measurement repeatability.

For large 2D and 3D surveys, the Elrec can be used in conjunction with the Switch Pro box(es) to increase the spread to 96 electrodes. When operating the system in this manner, complex measurement sequences can be designed and uploaded to the system via Electre II or Electre Pro software.

Receiver

  • Pulse duration: 1s, 2s, 4s, or 8s
  • Channels: 10 true differential inputs
  • Input Impedance: 100 MOhms
  • Input Voltage: 15V, automatic gain, input protection 1000V
  • Resolution / Accuracy: 1 µV / 0.2%
  • GPS: GPS input for coordinates,and synchronisation
  • Readings: Resistivity, Self potentiel, Induced polarisation ( Up to 20 windows), Quality control, and optional full waveform
  • Noise Rejection: power line rejection, SP linear drift correction.
  • Storage: 44800 readings, up to 8 hours full waveform , stored on solid state memory

Dimensions

  • ( L x W x H): 31x21x21cm Fiber glass casing, weather proof,
  • weight: 6.4Kg with internal RX battery
  • Operating Temp.: -20 to +70°C
