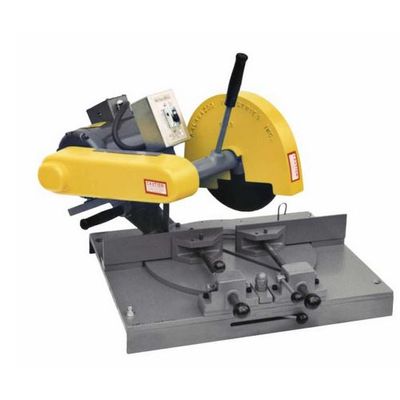

Kalamazoo - Model KM10 -10 Inch Mitre Saw
The KM10 10 inch abrasive mitre saw is versatile and heavy-duty that will mitre left/right and cut mild steel of various shapes quickly and efficiently. The Kalamazoo Mitre saw features a powerful 3HP motor, rugged steel base, cast aluminum saw arm, and a 5/8th spindle arbor.
Most popular related searches
- 3HP 1 PH or 3 PH (Specify phase and voltage.)
- 3PH amp draws: 230V 8.4 amps and 440V 4.2 amps.
- 1PH amp draws: 110V 24 amps and 230V
- The saw cutting capacities: 1 1/2″ solids, 2 1/2″ shapes @ 45°
- On/Off Switch.
- Steel spindle and motor pulley.
- Abrasive cutoff wheel size: 10″
- V-belt driven.
- It cuts 0° to 45° – left or right.
- 5/8″ spindle arbor.
- Replaceable steel handle with plastic hand grip.
- Sealed spindle bearings.
- Cast aluminum saw arm
- Steel base
- Positive index holes with locking pin
- Adjustable up and down stops.
- It comes standard with dual heavy-duty replaceable cam lock vises.
- Lever-lock for the table (located in front of the machine).
- Shipping weight: 250 lbs.
- Shipping dimensions: L 47″ x W 37″ x H 35″
- MADE IN THE USA!
