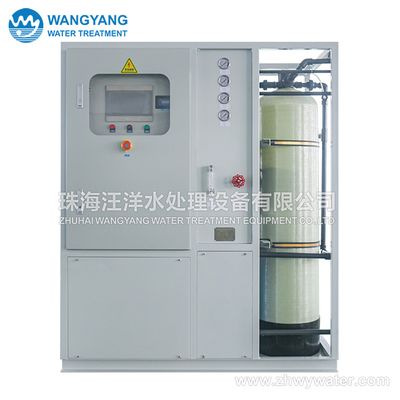

Wangyang - Model WY-SW-10 -10 Tons per day Automatic Intelligent Seawater Desalination System
The Automatic Intelligent Seawater Desalination System adopts the international advanced reverse osmosis technology and is designed by optimizing the system. The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in seawater, and desalinate seawater into high-quality water in accordance with the National drinking Water Sanitation Standard (GB5749-2006) TDS500mg/L. The low-noise, high-capacity small-scale desalination equipment provides a comfortable environment and unlimited fresh water for your navigation. Having a small seawater desalination equipment with light weight, low energy consumption and smooth operation will make your sailing faster, farther and more comfortable. You don't need to plan to dock the ship at the small port, but directly to the purpose, and no need to prepare fresh water to create more added value for you.Model: WY-SW-10
Water yield: 417 Litres per hour
RO product water quality: National Standard for Drinking Water(GB5749-2006)
Desalination rate: >98.5%
Output water saltness: <500mg/L
Recovery rate: 28%(Depending on temperature and inlet water quality)
Operation pressure: <6.5Mpa
Power: 4.75KW
Voltage: AC380V / 50Hz / Three phase
Protection grade: IP54
Dimensions: 1400*700*1900 mm
Net weight: 310Kg
Material composition: SUS316 Stainless steel
System function
1. High-pressure unloading, when the high-pressure pump outlet pressure exceeds 6.2MPa, the equipment automatically stops and protects and emits an audible and visual alarm.
2. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
3. The pre-treatment is equipped with an automatic multi-way valve for large-flow backwashing and full washing.
4. Configure the reverse osmosis membrane cleaning system to physically clean, chemically clean and refill the reverse osmosis membrane module.
Equipment list
1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories
