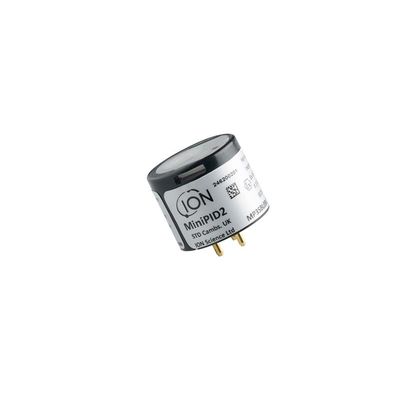

10.0 eV VOC Gas Sensor

The 10.0 eV gas sensor is a simple plug-and-play sensor able to deliver a dynamic and dependable response to thousands of volatile organic compounds (VOCs) across many diverse applications.

The sensor is designed for both diffusive and in-line pumped sampling, delivering an exceptional response time and clear down. The 10.0 eV gas sensor incorporates lamps of exceptional brightness and stability enabling detection of less volatile and less readily sensed compounds reliably, over an extended period of time.

Performance

• Electrode Stack Colour: White + gold spot
• Minimum Detection Limit: 5 ppb
• Range: 0->100 ppm
• T90 Response Time (Seconds): <8
• Sensitivity: >15 mV/ppm
• Lamp Energy: 10.0 eV

Power and Signal

• Supply Voltage (using internal regulator): 3.6 – 18 V (non intrinsically safe 10 – 18 V)
• Supply Voltage (using a regulated power supply): 3 – 3.6 V
• Current: 20 – 32 mA (130 mA for 100 ms at start up)
• Power Consumption: 100 mW at 3.3 V
• Output Signal (using internal regulator): 0 – 3.2 V
• Output Signal (using a regulated power supply): 0 to rail voltage – 0.1 V

Environmental

• Temperature Range: -40 to 65 °C
• Relative Humidity Range: 0 – 99% RH, non-condensing

Lifetime and Warranty

• Expected Life: >5 years
• Lamp Life: 10.6 eV 10,000 Hours
• Warranty: 10.6 eV lamp and MiniPID Body –12 months – 11.7 eV lamp – 3 months

Approvals

• Europe Certification: ATEX
• North America Certification: UL
• Worldwide Certification: IECEx
• Patents: US 7,046,012 EC 1474681
