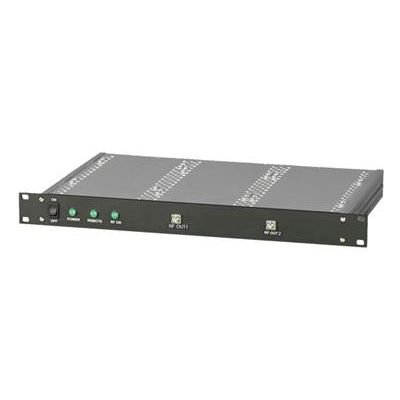

Berkeley - Model 865-M-40-X -100 kHz to 40 GHzMulti-Channel Low Noise Wideband Synthesizer
The Model 865-M-40-X is a multi-channel wideband low phase-noise synthesizer settable from 100 kHz to 40 GHz. The unit is available with 2, or 4 fully independently configurable outputs. For each channel, frequency, power, phase, and modulation can be set. The settable output power range of the 865-M-40-X is from -5 to +25 dBm.
Most popular related searches
- ATE
- LO for frequency converters
- Telecom / SatCom
- Highly phase synchronous and phase coherent switching option
- Fast switching down to 20 µs
- FM, PM, Pulse
- Internal OCXO, external variable reference
- Single DC supply
- Channels: 2, 4
- Frequency:
- Range: 100 kHz to 40 GHz
- Resolution: 0.001 Hz
- Accuracy: 0.1 ppm
- Output Power: -10 to +25 dBm
- Switching Speed: 500µs (20µs with option FS)
- Phase Noise At 1 GHzL:
- at 1 kHz: -132 dBc/Hz
- at 20 kHz-145 dBc/Hz
- at 10 MHz: -155 dBc/Hc
- Remote Control: Ethernet, USB (SCPI v1999)
- Modulation: Pulse
- Sweeps: List, Frequency
- Dimensions (W x L x H), Weight: 430 x 460 x 43 mm [16.93 x 18.11 x 1.69 in], < 10 kg
