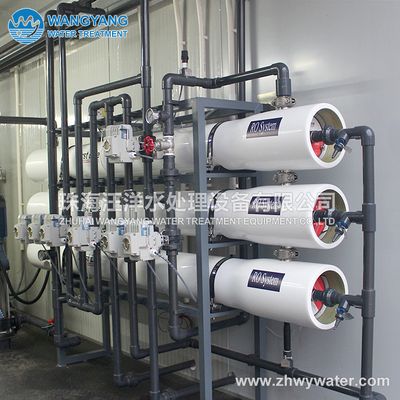

WANGYANG - Model WY-BW-100 -100TPD RO Water Purifying Equipment
The RO water purifying equipment is suitable for high salinity areas and seawater inversion areas, and is designed by an internationally advanced reverse osmosis technology. The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in brackish water, and desalinate brackish water into high-quality water in accordance with the National drinking Water Sanitation Standard (GB5749-2006).Model : BW-100
Water yield : 4.17m3/h
RO product water quality : TDS<500mg/L
Desalination rate : >98.5%
Output water saltness : <500mg/L
Recovery rate : 60%(Depending on temperature and inlet water quality)
Operation pressure : 1~2.5Mpa
RO Membrane : 6 pcs
Pressure vessel : 8040, 3 pcs
Power : 6.4KW
Voltage : AC380V / 50Hz / Three phase
Protection grade : IP54
Dimensions : 40 feet container (Equipped with insulation, air conditioning)
Net weight : 6,000Kg
* 1. Equipment can be customized according to customer requirements.
System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with a automatic control multi-way valve, and the quartz sand+manganese filter and the activated carbon+manganese sand filter are automatically cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
4. Matching ultraviolet sterilizer to ensure water quality.
Main accessories
● Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS/ GE brand
● Pressure vessel: FRP material
● Feed Pump: CNP brand
● High Pressure Pump: CNP brand
● Conductivity Meter: Createc
● Electric Element: Schneider brand or equivalent
Equipment list
1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories
