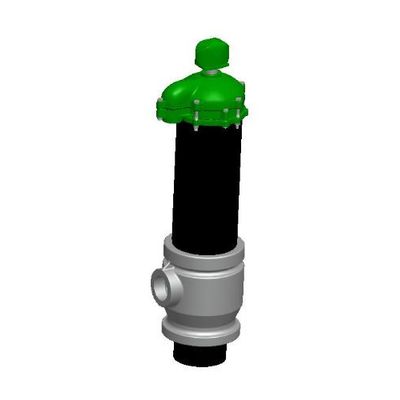

Monitor - 10Inch Custom Pitless Unit - NSF 61 Certified
The Monitor 10 inch Custom Pitless Unit is an advanced and hygienic solution designed for Municipal and Industrial water wells. Engineered for durability, the unit is constructed from high-strength cold-rolled steel and galvanized using lead-free zinc to ensure long-term corrosion resistance. Custom fabrication in stainless steel is available upon request. The unit provides an underground discharge that connects to water treatment facilities, ensuring a safe and sanitary water supply. Equipped with O-ring seals, it offers superior protection during installation and servicing. This frost-proof design eliminates the need for additional heating as all water passages are located below the frost line. Quick installation without the need for masonry or building construction makes it economically viable. Easy servicing is ensured with features like a removable well cap and support rings to prevent distortion. Available options include epoxy coating, API drop pipe, locking seal caps, and water sampling valves, making it a versatile choice for various applications.The Monitor 10" Custom Pitless Unit is a safe and sanitary method of completing a Municipal / Industrial water well. The Monitor Custom Industrial Pitless Unit attaches to the well casing and provides a sanitary underground discharge to the water treatment facility. The spool and discharge body are constructed of high strength cold-rolled steel. Using lead-free zinc, the spool and discharge body are galvanized for long term corrosion protection. Upon request, the Monitor Custom Fabricated Pitless Units can be fabricated from stainless steel. Every Monitor Industrial Pitless Unit Shipped With Everything Needed For Quick Installation Monitor NSF 61 Certified Custom Pitless Units are shipped as complete factory pressure tested pitless unit and include:
- Watertight Premium Well Cap
- Upper Bury Depth Casing Extension
- Discharge Body
- Spool
- Discharge and Drop Connection
- Lift-Out Bail
- Hold-Down Assembly
Available Custom Pitless Unit OptionsMonitor custom pitless units can be outfitted with epoxy coating, API drop pipe and discharge threads, cap cable seals, flowing well spools, locking seal caps, flanged upper casing, water sampler valves, wire seals, dual zone pitless with recharge lines, probe tubes, and additional conduit entrance connections for signal wires.
- CORROSION PROTECTION – all water passages are either hot-dipped lead free galvanized or constructed of corrosion resistant material
- O-RING SEAL PROTECTION – Monitor seal protection prevents seal damage during installation and service.
- FROST PROOF – No Heating is required. All water passages are below the frost line.
- QUICK TO INSTALL – A quality pump installation can be made easily and economically without delay for masonry or building construction
- EASY TO SERVICE – Well cap can be removed without disconnecting cables. O-ring seals on spool permit withdrawal of the entire inner assembly simply by lifting. Replacement is equally simple. Spool support eliminates vertical adjustment and any possibility of dropping the inner assembly into the wall.
- RELIABLE SEALS – Neoprene O-Rings between accurately machined hot-dipped lead free galvanized surfaces on the spool and within the unit provide positive seals.
- WATERTIGHT WELL CAP WITH SCREENED AIR VENT and LOCKING BOLTS – Designed to permit removal without disconnecting cables. Separate junction box is eliminated. Watertight cable and conduit sealing is optional
- HOLD-DOWN – Supplied with each unit. Hold-down pipe also serves as lift-out pipe for installation and servicing.
- SUPPORT RINGS – Prevent distortion of the Discharge Body due to vertical movement of Discharge Pipe
