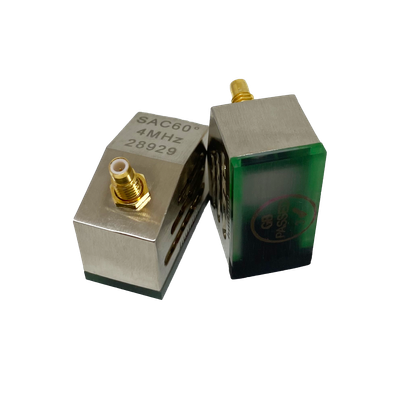

GB - Model SAC -10mm Crystal Single Angle Compression Ultrasonic Probe

The Single Angle Compression Probe features a crystal size of ø10mm and a contact face dimension of 29 x 6mm. This probe is available with various connector options, such as Lemo 01 (L), Lemo 00 (ML), Microdot (MD), and Subvis (S), allowing for compatibility with different testing setups. It supports angle adjustments to cater to different material velocities, with additional options like thick shoe and contour selections to match specific requirements. The probe is designed for ultrasonic testing with intermittent testing capabilities up to 300°C, though standard testing is applicable up to 90°C. Customers can select non-standard angles, frequencies ranging from 1 MHz to 15 MHz, and customize the probe to their specific needs. The unit has a net weight of 27g, making it lightweight and manageable for various nondestructive testing applications. The extended cable length feature further enhances its adaptability in dynamic field conditions.

GB - Model SAC -10mm Crystal Single Angle Compression Ultrasonic Probe
