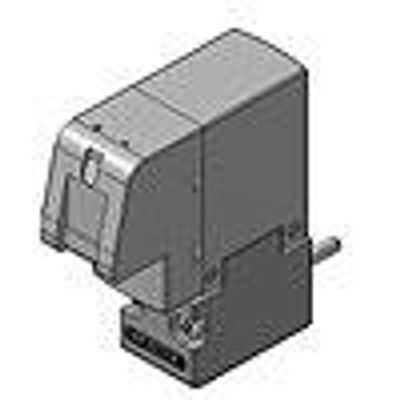

H-Kuhnke - Model 63 Series -10mm Low Power 2/3 Way Solenoid Operated Micro Valve
Series 63 Modular Manifolds can be built up to suit specific installation requirements. Components are available in 2 versions: for DIN rail, or surface mounting. Component sections consist of inlets, endplates: centre supports, centre inlets as well as valve bases. Special grommets, included with each module, are inserted between units to form a seal for internal common air supply and exhaust lines. Tabs at the bottom of each module interlock with adjacent sections to form the manifold. The module assembly is secured by tightening screws on the end modules to the panel surface or DIN rail.
Normally closed or normally open valve functions are achieved by assembling the valve bases in specific positions on the manifold, see manifold assembly notes.
Intermediate air supply modules and seal barriers can be used to construct manifolds with several air supply sources.
All air connections have barb fittings for 3mm I.D. tubing.
Valves are assembled on the built up manifold using a special seal and screws supplied in the valve package.
Electrical connections are dependent on the type of valve coil design selected.
Custom manifolds can be factory assembled for OEM applications.
Dimensions
Approximate manifold dimensions, including the standard size valves mounted, are 35mm (1 3/8") deep x 55mm (2 5/32") high x length. To determine length, add 10mm (3/8") for each module used in the assembly.
