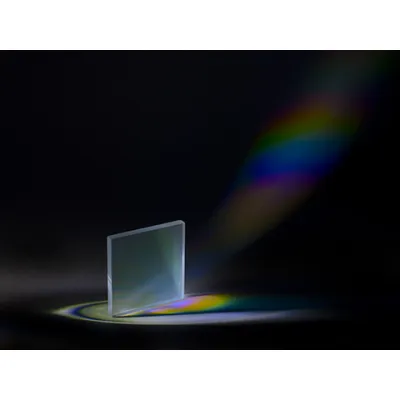

Omega Optical - 110 Groove Transmission Grating Beamsplitter

SHARE

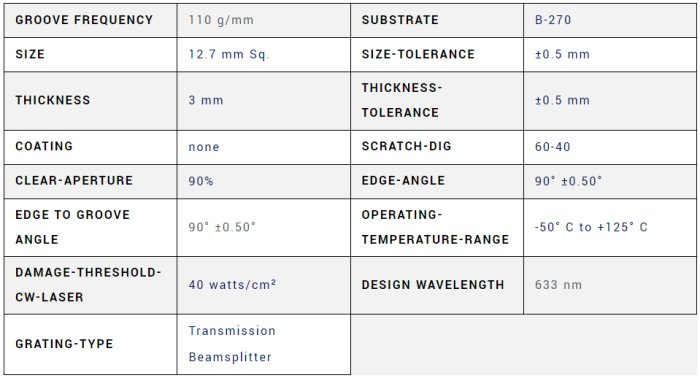

The 110 Groove Transmission Grating Beamsplitter from Omega Optical is designed with high precision for various optical applications. This beamsplitter features 110 grooves per millimeter and is crafted from B-270 glass, offering reliable transmission properties. The component measures 12.7 mm square with a thickness of 3 mm, both with a tolerance of ±0.5 mm. It features a surface quality of 60-40 and delivers 90% efficiency at 633 nm wavelength. The operational angle is specified at 90° with a tolerance of ±0.50°. The beamsplitter can withstand temperatures ranging from -50°C to +125°C and has a power handling capacity of 40 watts per cm². This product is ideal for use in a variety of optical systems, providing dependable performance under specified conditions.
