Omega Optical - 110 Groove Transmission Grating Beamsplitter, 25 mm Sq., 3 mm Thick

SHARE

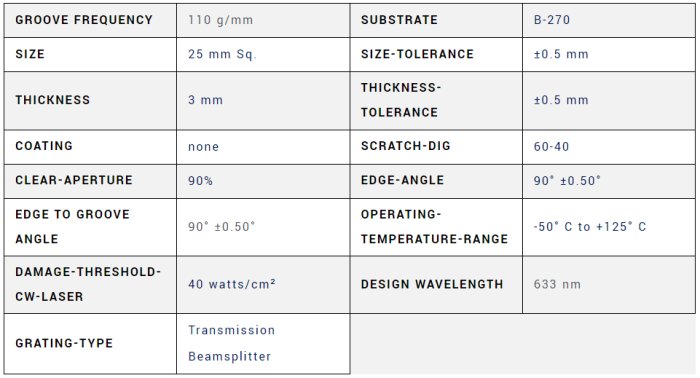

The 110 Groove Transmission Grating Beamsplitter by Omega Optical, SKU: TGB110-25, is a precise optical component tailored for efficient light management. This beamsplitter features a groove density of 110 grooves per millimeter and is manufactured from B-270 material. It measures 25 mm squared with a thickness of 3 mm and a dimensional tolerance of ±0.5 mm. The surface quality is rated at 60-40, ensuring minimal scatter and high optical clarity. It operates optimally at an angle of 90° ±0.50° and can withstand temperatures between -50°C to +125°C. Designed to handle power densities up to 40 watts per square centimeter, it ensures robust performance in various environments. The beamsplitter exhibits a transmission efficiency of 90% at a wavelength of 633 nm, making it suitable for advanced optical systems requiring high precision and dependability.
