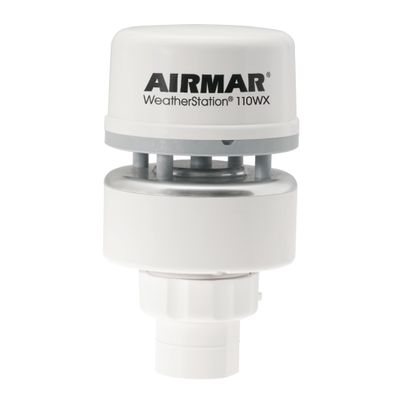

AIRMAR - 110WX WeatherStation® Instrument
Land-based, Stationary.The model 110WX is Airmar’s solution for land-based, stationary, weather-monitoring applications. The 110WX gives wind, air temperature, and barometric pressure readings. Feature rich and encased in a durable, rugged housing that is IPX6 rated, the 110WX is the right component for effective agriculture and livestock management. Reliability and performance, along with no moving parts, makes the 110WX a trouble-free and affordable choice.
Ultrasonic measurement of apparent wind speed and direction
Barometric pressure
Air temperature
Wind chill
Housing IPX6 rated for water-ingress protection
Data output via a single cable (various lengths available)
NMEA 0183/ASCII serial data protocol over RS-232 interface
NMEA 2000 protocol over CAN
Relative humidity moduleEnables dew-point and heat-index calculations
Field serviceable
WeatherStation housing rated IPX4
Weight: 275 g (0.6 lb.)
Wind Speed:
Range: 0 to 40 m/s
Accuracy: 5% at 10 m/s at 4 angles
Resolution: 0.1 m/s
Calculations: User configurable damping
Wind Direction:
Range: 0° to 359.9°
Accuracy: ±3° at 10 m/s
Resolution: 0.1°
Calculations: User configurable damping
Air Temperature:
Range: -40° to 80°C (-40 to 176°F)
Accuracy: ±0.3°C at 20°C
Resolution: 0.1°C
Barometric Pressure:
Range: 300 to 1100 hPa
Accuracy: ±0.5 hPa at 25°C (or better)
Resolution: 0.1 hPa
Optional Relative Humidity:
Range: 0 to 100% RH
Accuracy: ±5% RH at 0 to 90% RH at 20°C
Resolution: 0.1% RH
Operating Temperature Range: -25 to 55°C (-13 to 131°F)
Power:
Supply Voltage: 9 to 40 VDC
Supply Current: <55 mA (<0.7 W) at 12 VDC
NMEA 2000® Load Equivalency Number (LEN): 2
Communications:
Available Interface: Serial RS-232, Serial RS-422, CAN
Available Protocol: Comma delimited ASCII, NMEA 0183, NMEA 2000
Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
Mounting-thread Size on Base: Standard 1"-14 UNS (3/4" NPT optional)
Certifications and Standards: CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Note: Cables sold separately.
