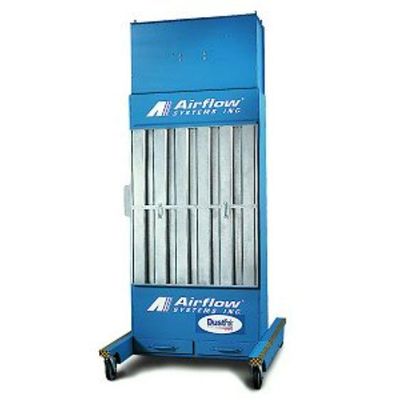

Lev-Co - Model PB - 06-004 -115"H x 54"W Panel Filter Dust Control System

The Self-Contained Control Booth is designed to remove airborne contaminants from a worker breathing zone. Can be used as a stand-alone unit or as part of an expandable dust control booth.

The high pressure of the direct-drive fan maintains a typical flow rate of 5500 CFM and contains twelve filters that have been redesigned to assure high initial efficiency and dust holding capacities.

Main options include:

• Various Filter Options
• Filter Media
• Preventative Maintenance Pressure Gauges
• Variable Frequency Drives

• 16 ga. steel cabinet with powder-coat finish
• 3 HP direct drive BI blower
• 208-230/460/575/3/60 TEFC motor wired to an electrical control box
• Standard with (12) MERV11 24x24x6 filters (42 sq. ft. each).
• 2` x 4` footprint

• Self-contained dust collection system:Eliminates costly ductwork and the need for a separate dust collection system.
• 3 HP direct-drive blower:Improves collection efficiency, increases reliability.
• Maximum efficiency:High flow-to-horsepower ratio provides the optimal energy efficiency.
• Wide filter selection:Many available filters, from single-stage MERV 11 to multi-stage HEPA

Top 5 contaminants/processes/applications:

• Welding Fumes
• Smoke
• Composite Dust
• VOC`s
• Chemical Fumes

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

PFPB-1
5500 CFM free standing Panel Filter Collector with (12) MERV 11 24 x 24 x 6 filters (42 sq. ft. of media each) Total 504 sq. ft. media 3HP TEFC motor 208-230/460/3/60. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

PFPB-2
5500 CFM free standing Panel Filter Collector with (12) MERV 11 24 x 24 x 6 filters (42 sq. ft. of media each) Total 504 sq. ft. media 3HP TEFC motor 575/3/60. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

• Filter Options (when ordering with main unit)
• Filter Media Options
• Replacement Filters
• Caster Options
• Filter Options
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
