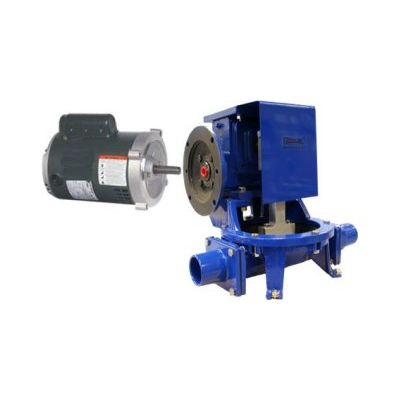

Guzzler - Model GE-2601A / GE-2601B -115 VAC Motorized 2600 Pump

FromThe Bosworth Company

SHARE

Available in either aluminum (GE-2601A) or bronze (GE-2601B).

Most popular related searches

stainless steel plate magnet

aluminum bronze coating

115 VAC motor
Pump speeds from 22 - 115 cycles per min (cpm)
4.4 gpm - 23.0 gpm
Accommodates 1-1/4" to 2" hose
Available in either aluminum (GE-2601A) or non-sparking bronze (GE-2601B)
Previously called the "2800" pump

Max Pressure Range: 7 - 13 psi / 0.48 - 0.90 bar
Lift/Head Range: 16.0 - 20.0 ft / 4.9 - 6.1 m
Capacity Range: 4.4 - 23.0 gpm / 16.6 - 87.0 lpm
Volume per stroke: 0.80 qt / 0.76 l
Max Service Temp: 190° F / 88° C

Speed Control: None
Valves: Flapper (Buna-N)
Diaphragm: Buna-N 3-Ply
Clevis Button Assembly: Stainless Steel
Motor Mounting Plate: Motor Mounting Plate
Inlet Hose Connection: 2" Smooth
Outlet Hose Connection: 2" Smooth
Motor Options: 115VAC, rpm: 58, torq: 395 in-lbs | gpm: 12.9, psi: 12, head (ft): 25
Pre-Pak Accessories: Not selected

Body & Ports * Epoxy-coated Aluminum (Blue),
Epoxy-coated Bronze (Bronze)
Clamp Ring Aluminum or Bronze Motor Mounting Plate
Valves * Buna-N Flapper w/molded steel reinforcement plate
Diaphragm * Buna-N Double Sided
Clevis/Button Assembly * Stainless Steel
Motors Accommodates NEMA 56-C motor; other models equipped with 12 VDC and 24 VDC motors
