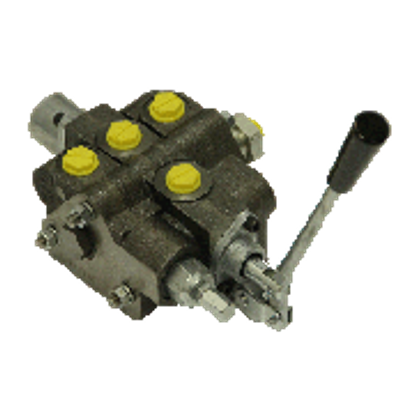

Prince - Model 12 GPM -12 Gallon Stack Valve Model SV Stack Valve
Standard Features: 1-10 Sections Per Valve Bank. Load Checks On Each Section. Hard Chrome Plated Spools. Compact Construction. Enhanced Metering Section Available in both the High and Low Sections. Differential Poppet Style Relief, Adjustable from 1500 to 3000 psi (Also available in Low Pressure Version Adjustable from 500 to 1500 psi). Power Beyond Capability. Reversible Handle. Mid-Inlet and Lock Valve Section available.
Most popular related searches
- Parallel or Series Circuit Construction
- Pressure Rating
- Maximum Operating Pressure 3000 psi
- Maximum Tank Pressure500 psi
- Nominal Flow Rating: 12 GPM
- Refer to Pressure Drop Curves
- Filtration: For general purpose valves, fluid
- cleanliness should meet the ISO 4406 19/17/14
- level For extended life or for pilot operated valves,
- the 18/16/13 fluid cleanliness level is recommended
- Foot Mounting
- Maximum Operating Temp: 180°F
- Weight Per Section
- Inlet Section: Approx 3 75 Ibs
- Outlet Section: Approx 3 75 Ibs
- Work Section (Standard): Approx 5 50 Ibs
- Work Section (High) Approx 8 00 Ibs
