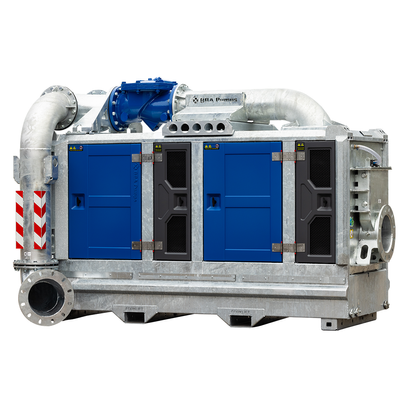

BBA Pumps - Model BA300E D355 Multi-Use -12-Inch Mobile Electric Pump
The BA300E is a 12-inch mobile electric pump and suitable for pumping dirty water with solids up to 120 mm. The centrifugal pump is vacuum assisted and therefore dry self-priming. We use efficient electric motors designed to meet various requirements across markets. You can choose for a base frame configuration or a sound attenuated canopy. Optionally we can offer a control panel with variable frequency drive featuring automatic level control in order to cope with the changing water supply.
- For dirty water and sewage
- Pump flow up to 1250 m³/h
- Pump head up to 22 mwc
- Free passage of 105 x 120 mm
- 4 years BBA Pumps limited warranty
Centrifugal Pump
The BA300E is a 12-inch BBA Pumps centrifugal pump with open impeller and adjustable wear plate with cutting slots. The large solids handling is unparalleled at 105 x 120 mm, making this a real dirty water pump. Best-in-class pump efficiency and an excellent NPSH curve lead to an ultra-performing unit. Other standard features are large inspection covers, suction and pressure gauges and a heavy duty bearing frame with an extra oil chamber for dry running.
Priming System
Featuring a fully automatic priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. A genuine BBA Pumps priming system includes a diaphragm vacuum pump, a check valve on the discharge side and a float box for air-water separation on the suction side.
Frame or canopy mounted
Electric pumps are available both with an open frame or in a silent and lockable canopy. BBA Pumps configurations are known as the most innovative and robust in the world. To aid mobility, the forklift pockets and lifting eyes are fitted as standard. Pumps in canopies are by far the most popular due to the following benefits:
- Extremely low noise level
- Maximum safety while running
- Better resistant to vandalism
- More space for your branding
- Optimal weather protection
- Minimal ageing, therefore stable in value
- Discharge x Suction: 12" x 12"
- Max. flow: 1250 m³/h
- Max. head: 22 mwc
- Free passage: 120 x 105 mm
- Priming system: MP100 (100 m³/h)
- Motor: 75 kW - 4 pole
- Voltage: 400/690V - 50 Hz
- Starting method: DOL - VFD
- Frame: 12-29
- Canopy: M12-29
- Dimensions L x W x H: 3313 x 1200 x 2125 mm
- Dry weight: 3700 kg
- Warranty: 4 years
BA auto prime pump
The BA range of pumps has been designed with a clear focus on reliability, efficiency and durability. Featuring the 100% mechanical priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. The heavy build style of both pump and canopy make the BA range perfect for use in the strenuous contractor market.
World-class performance
The BA range is built to be deployed on the most demanding dewatering and sewage bypassing applications. Using high efficiency pumps and IE3 electric motors, the pumps offer maximum performance at minimal cost, fully in-sync with the company philosophy of “Lowest cost of ownership”.
Sustainability
- High efficiency pumps and motors
- Corrosion free hot dip galvanised frame or canopy
- Lean manufacturing philosophy
- 100% Oil-spill free priming system
Complete package designed & built by BBA Pumps
- Complete in-house design & production
- Over 60 years of experience in the market
- Extensive testing facility in-house
- Contemporary & functional design
- Durable & eco-friendly materials
- Custom builds available
After sales service & product support
- Single supplier for parts, spares & accessories
- Dedicated customer help-desk (24h service)
- Dedicated service department in-house
- Global parts distribution network
- Optional global on-site servicing
- Extensive training options available (technical & commercial), on-site or in-house
