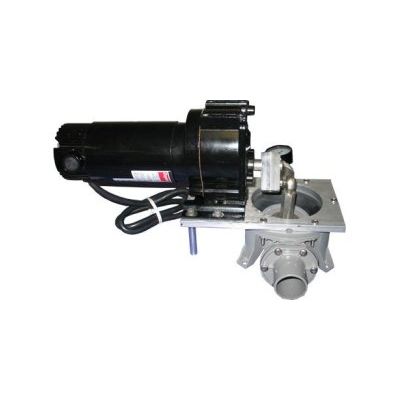

Guzzler - Model GE-0503D -12 VDC Motorized 500 Pump
12 VDC permanent magnet motors with speeds from 23 to 94 rpm. 3.2 gpm - 12.9 gpm. Accommodates 1-1/4" - 2" hose. Pump body and flanges made of durable, lightweight Delrin plastic.
Most popular related searches
- 12 VDC permanent magnet motors with speeds from 23 to 94 rpm
- 3.2 gpm - 12.9 gpm
- Accommodates 1-1/4" - 2" hose
- Pump body and flanges made of durable, lightweight Delrin® plastic
- Max Pressure Range: 7 - 15 psi / 0.48 - 1.03 bar
- Lift/Head Range: 16.0 - 20.0 ft / 4.9 - 6.1 m
- Capacity Range: 3.2 - 12.9 gpm / 12.1 - 48.8 lpm
- Volume per stroke: 0.55 qt / 0.52 l
- Max Service Temp: 150° F / 66° C
- Speed Control: None
- Valves: Flapper (Buna-N)
- Diaphragm: Buna-N (Nitrile)
- Clevis Button Assembly: SS Washer & Aluminum Clevis
- Clamp Ring: Motor Mounting Plate
- Inlet Hose Connection: 1-1/2" Smooth
- Outlet Hose Connection: 1-1/2" Smooth
- Motor Options: 12VDC, rpm: 64, torq: 150 in-lbs | psi: 10, head (ft): 23
- Pre-Pak Accessories: Not selected
- Body & Ports * Delrin / Gray
- Clamp Ring Aluminum Motor Mounting Plate
- Valves * Flapper, Duckbill
- Diaphragm * Buna-N, Buna-N Double Sided, Neoprene, Viton, EPDM, Silicone
- Clevis/Button Assembly * SS Washer + Aluminum Clevis
- Motor 12 VDC, 1/6 HP
