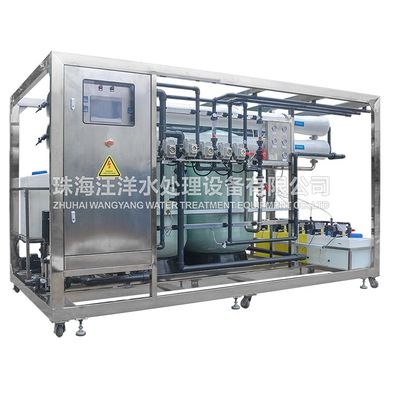

Zhuhai Wangyang - Model WY-BW-120 -120Tons Per Day RO Brackish Water Desalination System
The RO Brackish water desalination system is suitable for high salinity areas and seawater inversion areas, and is designed by an internationally advanced reverse osmosis technology. The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in brackish water, and desalinate brackish water into high-quality water in accordance with the National drinking Water Sanitation Standard (GB5749-2022).
Most popular related searches
brackish water desalination
water desalination system
brackish water
BWRO desalination system
water desalination
desalination system
reverse osmosis membrane
reverse osmosis system
high-pressure pump
brackish water RO system
- 120TPD RO Brackish water desalination system
- Model: WY-BW-120
- Water yield: 5m3/hour
- RO product water quality: TDS<500mg/L
- Desalination rate: >98.5%
- Output water saltness: <500mg/L
- Recovery rate: 65% (Depending on temperature and inlet water quality)
- Operation pressure: 1~3Mpa
- RO Membrane: 6 pcs
- Pressure vessel: 400, 2 pcs
- Power: 16.5KW
- Voltage: AC380V / 50Hz / Three phase
- Protection grade: IP54
- Dimensions: 3800*2000*2240mm
- Net weight: 3,900Kg
* 1. Equipment can be customized according to customer requirements.
- Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
- The pretreatment is equipped with a control multi-way valve, and the quartz sand filter and the activated carbon are automatically cleaned under a certain pressure difference.
- The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
- Matching ultraviolet sterilizer to ensure water quality.
- Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS brand
- Pressure vessel: FRP material
- Feed Pump: CNP brand
- High Pressure Pump: CNP brand
- Conductivity Meter: Createc
- Electric Element: Schneider brand or equivalent
- Water treatment equipment
- User manual, Operation video*
- Final document (product certificate, factory test report, packing list, equipment drawing)
- Other consumables accessories
