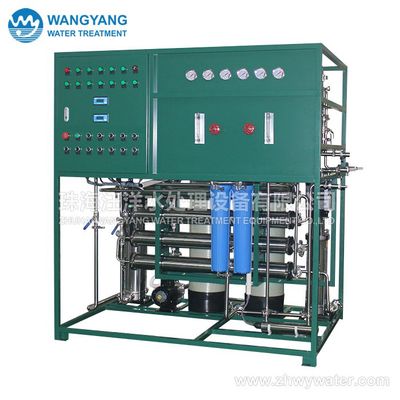

WANGYANG - Model WY-TW-12-2 -12TPD Two Stage RO Pure Water Reverse Osmosis System for drinking
Reverse osmosis pure water treatment equipment is to desalinate tap water into drinking water. pure water series has won the favor of customers because of its high treatment capacity, small volume, exquisite and chic appearance, convenient installation and operation, etc. The reverse osmosis technology of the equipment is designed by using special RO technology. The key components are imported famous brand products, advanced technology, reliable quality, strong expansibility, reasonable structure, small occupation of land, high water utilization rate, low energy consumption, fully automatic operation, simple operation and maintenance.Model : WY-TW-12-2
Water yield : 500L/h
2-stage RO product water quality : TDS<5mg/L
Desalination rate : >98.5%
Output water saltness : <5mg/L
Recovery rate : 50%(Depending on temperature and inlet water quality)
Operation pressure : <3Mpa
RO Membrane : 1-stage: 2 pcs, 2-stage: 2 pcs
Pressure vessel : 1-stage: 2 pcs, 2-stage: 2 pcs
Power : 2.68KW
Voltage : AC380V / 50Hz / Three phase
Protection grade : IP54
Dimensions : 1600*1150*1745 mm
Net weight : 273Kg
Material composition : SUS304 Stainless steel
* 1. Equipment can be customized according to customer requirements.
System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with an automatic control multi-way valve, and the multi-media filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
4.Matching ultraviolet sterilizer to ensure water quality.
Main accessories
● Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS/ GE brand
● Pressure vessel: Stainless steel material
● Feed Pump: Grundfos/ CNP brand
● High Pressure Pump: CNP brand
● Conductivity Meter: Createc
● Electric Element: Schneider brand or equivalent
Equipment list
1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories
