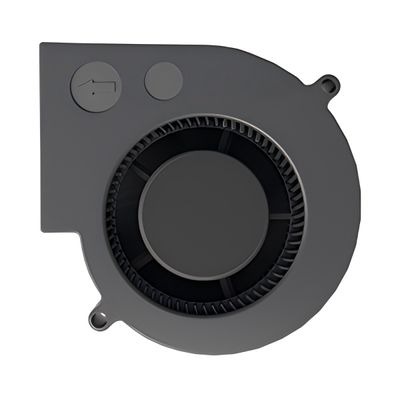

Cubic Sensor and Instrument Co.,Ltd. - Model 9733 -12V DC Cooling Fan for Oxygen Concentrator
Cubic 12V DC Cooling Fan 9733 is specially designed for portable oxygen concentrators, medical ventilators, and other medical devices. With a brushless DC motor and high-strength polymer materials, this fan provides stable airflow up to 23.82 CFM and a pressure rating of 24.57 mm H2O to support the normal operation of medical equipment. Operating quietly, safely, and with low power consumption, the fan ensures optimal cooling in oxygen concentrators and other medical devices.Most popular related searches
- Effective cooling performance for oxygen concentrator
- Locked rotor protection and auto-restart functionality, ensuring optimal safety and reliability
- Simplified installation by including 2-Pinwire leads for straightforward setup
- 4.8Watt Low voltage startup, wide operating voltage range
- Support flexible customization
Bearings Type: ball bearings
Rated Voltage: 12Volt DC
Starting Voltage: 6Volt DC
Power: 4.8Watt
Speed: 3200±15%RPM
Connector Type: JWT A2501-2P
Max Airflow: 23.82CFM
Max Pressure: 24.57mmH2O
Noise Level: 45.32dB(A)
Dimensions: L94.3*W33*H97.2mm
Operating Temperature: -10°C~70°C
Storage Temperature: -40°C~70°C
Life Expectancy: 50,000 hours
