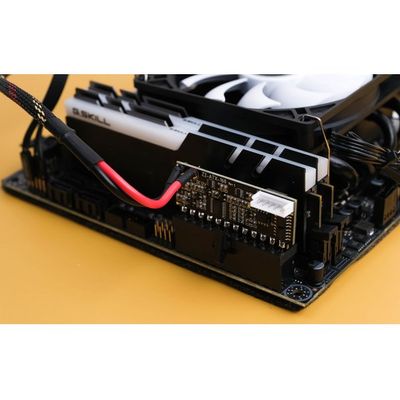

Pico-Box - Model Z2-ATX-160 -12V Input 160 Watts Output Plugin DC-ATX PSU
The Z2-ATX-160 is a small yet powerful and fully compliant ATX power supply designed to power a wide variety of motherboards from a single 12V regulated power source. Z2-ATX-160 has two paralleled high performance 10mR MOSFETs to implement the load switch for the 12V output rail, capable of handing large currents with peack currents up to 12A. Z2-ATX-160 has achieved the cost-performance tradeoff and is the ideal choice for you to build the low-cost mini-ITX computer system.
Large Current Load Switch
Although limied by the cost pressure, two paralleled MOSFETs are used to implement the load switch for +12V output rail, to provide as much as 10 amperes current.
Ultra Compact Size
We achieved the extreme board width and height, making the Z2-ATX-160 take up as little space as possible in your mini size chassis.
Cost competitiveness
The design of Z2-ATX-160 achieves the trade off between cost and performance. It is the ideal power supply choice to build a low-cost mini-ITX computer.
Cable Harness
Besides the input cable with 12V DC input 5.5x2.5mm connector soldered to the PSU, we provide the cable harness with 5pin connector on the PSU side provides one CPU 12V 4+4 connector, one PATA power and two SATA power connectors.
