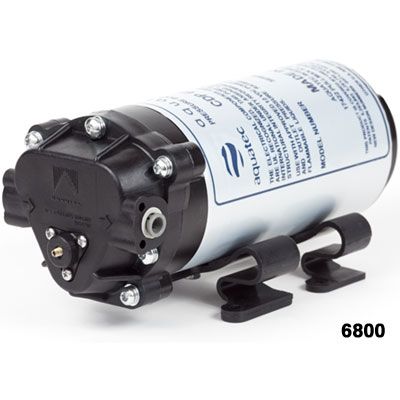

Aquatec - Model 68XX-2X03-B331 -12VDC 0.9 LPM Pressure Booster Pump
Aquatec’s original product, the 6800 Series and 8800 Series, are still the global standard in diaphragm booster pump technology, providing the highest quality and most reliable inlet pressure for efficient membrane utilization. Aquatec’s leading Innovation continues with the introduction of three new booster pump Series: the compact front-ported 3300 Series for applications where pump fitment space is limited and water pressure boosting is needed for up to 200 GPD rated RO systems or compact carbonated/still water dispensers, the 5800 Series model 5858-2LM2-B534 in-line ported 300-400 GPD rated RO pump, and the In-line ported 5300 Series which is capable of boosting water pressure for higher flow 500-1000 GPD rated RO systems, higher flow carbonated/still water dispensers, or higher flow heat exchange recirculation systems.
Most models are designed for intermittent duty, although some models are rated for continuous operation. Effective for recirculation based applications as well. They are ideally suited to work with hydro-pneumatic storage systems but are compatible with most hydraulic shut-off valves as well. These pumps are commonly used with one or more of our flow control components including: pressure switches (PSW Series), tank level controllers (TLC Series), automatic flow restrictors and timer (AFR and AFT series) or electronic shut-off valves (ESO Series).
MOTOR:
TYPE: 12 VDC, Permanent Magnet,
Totally Enclosed, Non-Ventilated
LEADS: 20 AWG, 6” LONG
TEMP. LIMITS: This Motor is Not Equipped with Thermal
Protection. For User Safety, Optimal
Performance, and Maximum Motor Life, The
Motor Surface Temperature Should Not Exceed
150°F (66°C), as Shown on the Heat Rise Graph.
DUTY CYCLE: See Heat Rise Graph
PUMP DESIGN: 3 Chamber Diaphragm Pump, Self Priming,
Capable of Being Run Dry
TYPICAL APPLICATION: Pre-Filter Water Treatment (R.O. Boost)
MATERIALS:
HOUSINGS: Nylon
VALVES: EPDM
DIAPHRAGM: Santoprene
FASTENERS: Stainless Steel
LIQUID TEMPERATURE: 170°F (77°C) Max.
PUMP CERTIFICATIONS: NSF Standard 58
