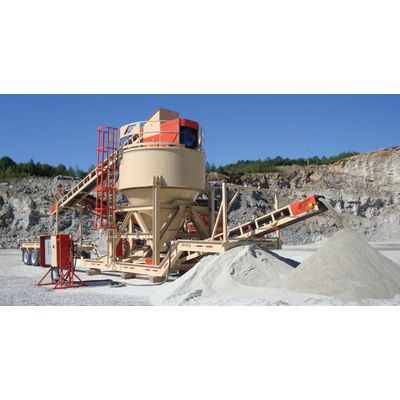

Fisher Industries13 Inch Portable Air Separator

SHARE

The 13` diameter Fisher Air Separator successfully removes unwanted fines from aggregate products, bringing otherwise rejected material into specification. Its ability to "dry" process materials and remove excess fines promotes a clean and efficient operation. The Fisher Air Separator can eliminate the need for wash plants, and in areas where water is in limited supply, it can be an effective economic tool. The Fisher Air Separator is field proven in abrasive and non-abrasive applications. It has achieved successful separation of unwanted fines in limestone, granite, trap rock, basalt, silica, and sand & gravel applications.

Most popular related searches
  • Designed or up to 150TPH of 3/8” (10mm) minus product
  • 75HP 1200RPM electric motor with v-belt drive and jackshaft assembly
  • WEG CFW-11 100HP AC inverter drive
  • Automatic lubrication system on timer to main bearing, pinion bearing, labyrinth seals, and dust rings
  • 10HP 1800RPM electric motor hydraulic system with dual 6.5” x 48” lift cylinders and lift assembly for ease of setup and tear down
  • Triple 10’ 22,500# hub piloted axles with brakes, mechanical suspension and 285/75R 24.5 low-profile tires
  • Confined space access with lower cone slide out
  •  Heavy-duty beam chassis frame
  • Italvibras 1/2HP vibrator
  • Special designed wear liners bolted in wear areas
  • 18” x 34’ feed conveyor with 7.5HP motorized head pulley with full-length covers and skirted
  • (2) 18” x 24’ discharge conveyors with 7.5HP motorized head pulley with full-length covers and skirted
  • Removable electrical panel stand with controls and 150’ of power cord
  • Available as stationary unit (no chassis or conveyors included)
  • All electrical controls designed for country`s electrical source
  • 5th wheel = 25,640#   Triple axles = 39,540#
  • 13’-3” x 13’-10” x 61’
