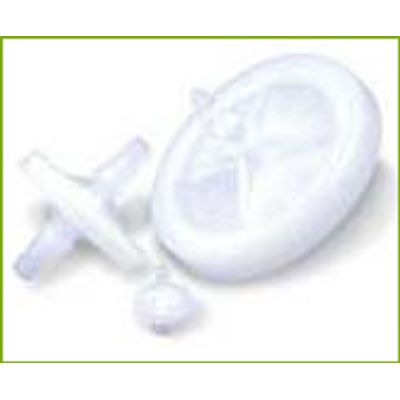

13 mm, 37 mm, and 50 mm Chemical Resistant Filters

Sensible Solutions for Delivery of Sterile Air to Patient

• Variety of HEPA-rated filter media and inlet/outlet configurations
• Custom colored printing option for product and/or company identification
• High particulate-loading capability to maintain flow rates over extended periods
• High flow rates at low differential pressures
• Rugged polypropylene housing withstands high temperatures, high pressures and aggressive solvents
• Autoclavable

Applications

• Insufflation
• Oxygen concentration
• Nebulization
• Oxygenation
• Sterile delivery of air

Specifications

Effective Filtration Area
0.8 cm2

Materials of Construction
Media: Versapor® or PTFE
Housing: Polypropylene

Inlet/Outlet Connections
Inlet: FLL; Luers conform to ISO594
Outlet: MLS; Luers conform to ISO594

Maximum Operating Temperature
PTFE: 130 °C (266 °F)
Versapor: 88 °C (190 °F)

Pore Size
0.2 - 5.0 µm

Sterilization Compatibility
PTFE: Autoclavable, EtO
Versapor: Gamma irradiation, EtO

Biological Safety
Materials of construction pass USP Biological Reactivity Tests, In Vivo <88>
