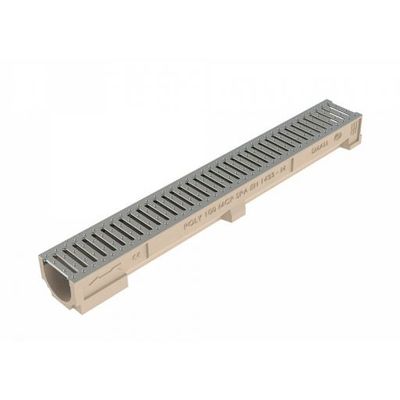

Mario Cirino Pomicino - Model Hydroflow -130x1000mm Drainage Channel

Channel body – length of 1000 mm and free opening of various sizes – made of polymer concrete equipped with:

• provision, in the lower part of the channel, for the insertion of an external pipe;
• zero internal gradient (absence of internal slope);
• male/female system for use in series.

Rectangular shaped galvanized steel grid equipped with:

• parallel drainage slots arranged in a row;
• lateral edges to the plate for the protection of the surfaces of the channel body exposed to traffic;
• shaped reliefs on the sides for attachment to the channel body by pressure;
• anti-slip reliefs.

The channel body and the grid must bear the reference standard, the drive-over class, the CE mark, the indication of the type M, the manufacturer`s mark in code and the production batch date.

Complementary works: the achievement of the resistance characteristics, according to the specifications dictated by the UNI EN 1433 standard, is obtained with a concrete completion casting to be carried out on site and according to the manufacturer`s recommendations.

Equipment on request: Polymer concrete cap with male/female system for front closure of the channel. The sealing of the junction of the cap with the channel or of two channel elements occurs through the use of acetic silicone/polyurethane adhesive or according to the manufacturer`s recommendations.
