ALCO - 13mm XC DBB Valve

• Fire Safe Design
• UNI Directional Flow
• Bi Directional Flow
• Servicing Kits
• Severe Temp Rating
• NACE Approved

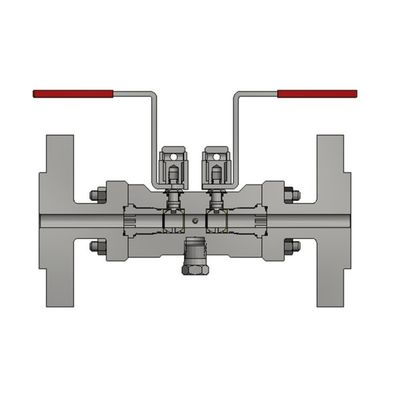

The XC DBB Valves offers a ball, needle, ball configuration based on soft seated PEEK design, AED O rings as the primary seal and a graphite seal for the fire safe integrity. The XC range is available from 1/2" to 3" up to class 2500lbs in 3 materials. Carbon Steel LF2, 316 Stainless Steel and Duplex. The range is ISO 15848 Part 1 qualified, PR-2 qualified and endurance tested to over 1200 cycles. The range is full qualified to ISO 10497/API 607V.

• Valve Types : Double block and bleed
• Pressure Rating : Class 150 - 2500 (API Optional)
• Temperature Rating : -46°C up to 200°C
• Bore Size : 13MM
• Connection Size : 1/2" - 3"
• Inlets : Raised Face
• Flat Face : Ring Type Joint
• Outlets : Flanged / Threaded / Butt Weld/Socket Weld
• Handles : Lever Isolates and T bar vent.

Materials include Carbon Steel, Stainless Steel and Duplex Other exotic materials available upon request.

• Material Construction
• Stainless Steel 316
• Duplex
• Carbon Steel. Other Materials can be made available upon request
• Trim Material :
• All trim materials are a standard UNS S31803 (22% Duplex). Other materials available on request
• Bolting Materials :
• L7M
• B8M. Coatings available on request
• Material Traceability : Yes

All Alco Valves Group products are designed to comply with or exceed internationally recognised products. API 598 approved tested.
