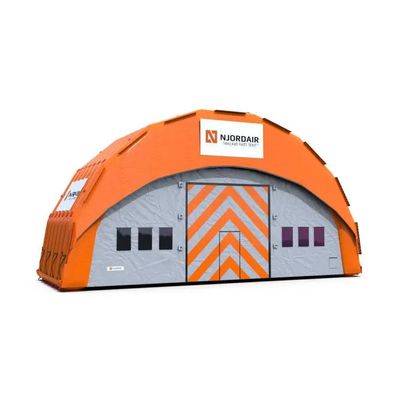

Njordair - 14m Constant Air Fast Tent Module

SHARE

Fast Tent is a self erecting, heavy duty inflatable shelter system designed for rapid deployment and relocation. Using Fast Tent prevents weather-related downtime and keeps your crews safe & product,

Most popular related searches
flame retardant
heavy metals
workplace air
  • 14m width
  • 5m  length
  • 7m height

Fast Tent is a self erecting, heavy duty inflatable shelter system designed for rapid deployment and relocation.

Using Fast Tent prevents weather-related downtime and keeps your crews safe & productive year round. Fast Tents also create a professional image for your business.

The 14m (46’) wide Fast Tent (constant air) work tent is a rapid deployment air building suitable for a wide range of applications in tough operational environments and is a popular choice with the construction industry. With rapidly inflatable reinforced PVC ‘air beams’, our 14m (33ft) wide ‘Fast Tent’ inflates in just 4 minutes 10 seconds.

Supplied as a 5m (16’) long module. Use it as a ‘standalone’ building or join multiple modules together (end walls are removable).

Need a different size? We have Fast Tents from 6m (20’) to 14m (46’) wide in our constant air range.

Dimensions:

  • Length: 5m (16′)
  • Width (outside): 14m (46)
  • Width (inside): 12m (40′)
  • Height (outside): 7m (23′)
  • Height (inside): 6.1m (20′)
  • Packed Size: 2m x 1.5m x 1.5m (6.5′ x 5′ x 5′)
  • Weight : 419Kg (923lbs)

Construction:

  • Frame: n/a
  • Side Walls: 620gsm PVC (Flame Retardant)
  • End Walls: 2 x removable – 620gsm PVC (Flame Retardant)
  • Roof: 620gsm PVC (Flame Retardant) with lightweight PU option.
  • Module Connection: 9 x dutch lacing sections + rain cover

Standard Features:

  • Windows: 12 x clear PVC windows – 60cm x 90cm (23″ x 35″)
  • Access: 2 x pedestrian door – 1m x 2m (3’2″ x 6’5″)
  • 2 x machinery door – 4m x 4m (13′ x 13′)
  • Fans: 1.5hp (one for each tent module)
  • Fill Points: 2 x 0.75m (2’6″) filler pipes (1 each side)
  • Deflation Zips: 2 x 1m (3’3″) quick deflate zips
  • Internal Ties: 40 x webbing loops
  • Document Pouch: 1 x 350mm x 350mm (14″ x 14″) clear external pouch in end wall
  • Duct Holes: 2 x 300mm (12″) ducting holes with velcro flap

Anchors (Each side):

  • High Level: 5 x multi directional webbing – 150Kg (330 lbs) capacity
  • Mid Level: 5 x multi directional webbing – 150Kg (330 lbs) capacity
  • Ground Level: 7 x heavy duty metal ring – 150Kg (330lbs) capacity (red/green colour coded)

Anchors (Each end):

  • High Level: 12 x multi directional webbing – 150Kg (330lbs) capacity
  • Ground Level: 10 x multi directional webbing – 150Kg (330lbs) capacity

Standard Accessories:

  • Transport Bag: Heavy duty PVC Transport Bag
  • Repair Kit: 640gsm PVC material, glue, needle & thread
  • Stakes: 300mm + 750mm (12″ + 29″) long reinforced steel
  • Ties: 18mm (3/4″) polypropylene rope
  • Colours (Built to order): Choice of 18 colours

Branding / Logos:

  • Side Walls: 2 x removable digitally printed PVC banners – 300cm L x 150cm H (9’10” x 4’11”)
  • End Walls: 2 x removable digitally printed PVC banners – 300cm long x 150cm H (9’10” x 4’11”)
  •  Note:: Specification and dimensions may be subject to change without notice.
