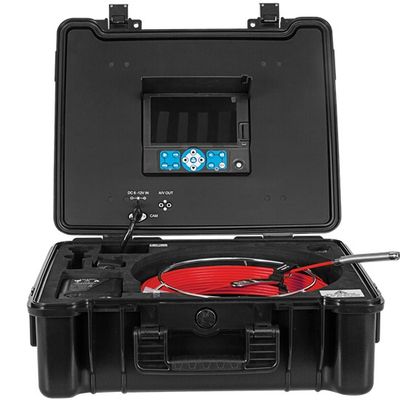

Pipe-Magic - 14mm Drain Inspection Camera System with 20m cable and Distance Counter

What’s included?

• 1 x 14mm Camera head
• 1 x 20m-40m cable wheel
• 1 x battery pack
• 1 x remote control
• 1 x screw driver
• 1 x power adapter
• 1 x car charger
• 1 x waterproof suit case with monitor mounted

Packing details:

• Each unit in a professional tool case
• 1 unit in one carton
• Carton G.W.: 11kg
• Carton Measurement: 55 x 49 x 26cm

• 1/4″ CMOS camera, 82° vision angle, 648H x 488V pixels
• Camera Size Φ14mm×125mm (Main body Φ14×20.5mm)
• Sapphire glass lens cover, 46 white LEDs
• Focus Distance 10cm (approx)
• Water proof level, 10m underwater (camera fix on cable)
• Push cable dia. 4.8mm
• 7” LCD color monitor
• SD Card slot to store still pictures or videos
• One push record button
• LED brightness control buttons
• Video image rotate button
• With microphone for audio recording
• Rechargeable battery lasts up to 8 hours
• On-Screen date and time
• On-screen distance counter, Meter/feet
• 20m-40m fiberglass push rod
• Rotatable cable reel mounted in case for convenient operation
• Waterproof ABS suitcase with all parts included

• For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
• For Maintenance of Plumbing and Wiring behind walls

• Camera Size: Φ14mm×125mm (Main body Φ14×125mm)
• Camera Total Length: 125mm (include spring)
• Sensor: 1/4″ CMOS, 400 TV-Line
• Pixel: 688H x 488V
• View Angle: 82°
• Focus Distance: 10cm (approx)
• Depth-of-Field: 20cm(approx)
• Front Lens: Sapphire glass
• Water-Proof: 10m Under Water(Camera fix on Cable)
• Shell Material: Stainless steel
• Lighting: Built-in 4×LED(White)
• Operating Temperature: -10~50℃/+14~+122℉
• Storage Temperature: -20~60℃/+4~+140℉

• 20M-40M fiberglass rod cable with on-screen distance counter
• Dia. of push cable: 4.8mm
• Material of cable: Fiberglass covered by PP
• Operation: Mounted and rotatable in the case

• Screen: 7-inch 16:9 Super bright HD color LCD screen
• Resolution: 800×480 RGB
• Mirror and Flip: support image mirror, and flip
• Video Resolution: 720*576 25fps Max.
• Video Encoding: H.264
• Photograph: 720*480
• Audio Recording: local sound record
• Output: video output
• External memory: support SD memory card up to 32GB
• Data output: USB 2.0 to PC
• Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses

• Power Input: DC 9V-12V
• Battery Capacity: 7.4V 6600mAh Rechargeable Li-on Battery
• Power Output: 6-12V DC, USB 5V
• Work/Charge time: 8 hours

• Size: 517 x 434 x 200mm (LxWxH)
• Box Color: Black or Yellow (selectable)
