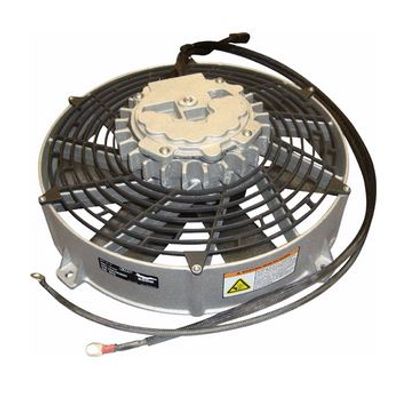

EMP - Model FiL-15 -15" Brushless Electric Fan
The FiL-15 is a high performance, long life, severe duty 15 inch fan used in cooling systems in extreme environments. It is used in the transit bus market, on highway market, refuse market and motor coach market.
Most popular related searches
- 12 or 24 VDC Brushless Motor +
- Rugged Design +
- SAE J1308 Compliant Finger Guards +
- Lab Tested Under Severe Conditions +
- Field Proven Long Life +
- Reversible +
- Variable Speed +
- Service Tool Available +
- Sealed and Fully Submersible +
12 or 24 VDC Brushless Motor
Brushless, permanent magnet motors are combined with EMP designed motor control electronics to provide a high efficiency, long life fan. Brushless motors have no contacting parts to wear and reduce life. Features include locked rotor protection, over temperature protection, over current protection, over voltage protection and reverse battery protection.
Brushless, permanent magnet motors are combined with EMP designed motor control electronics to provide a high efficiency, long life fan. Brushless motors have no contacting parts to wear and reduce life. Features include locked rotor protection, over temperature protection, over current protection, over voltage protection and reverse battery protection.
- Airflow 2,000 CFM @ 1.0 Inch H20 (12V)
- 3,000 CFM @ 1.0 Inch H20 (24V)
- Weight 18 lbs.
- Max Continuous Operating Temp 203° F
- Min Continuous Operating Temp -40° F
- Max Storage Temp 257° F
- Min Storage Temp -58° F
- Sealing Rating IP6K9K
- Fan Configuration Push or Pull
- Voltage 9-18 VDC (12V)
- 18-32 VDC (24V)
- Max Current 50 Amps (12V)
- 50 Amps (24V)
- Max Fan Speed 3200 RPM (12V)
- 4000 RPM (24V)
- Minimum Fan Speed 500 RPM
- Finger Guard Protection SAE J1308
- Reversal Options PWM, J1939, Enable or Timed Internal
- Control Inputs On/Off, PWM, J1939, EMP-Link, Thermistor or Pressure Transducer
