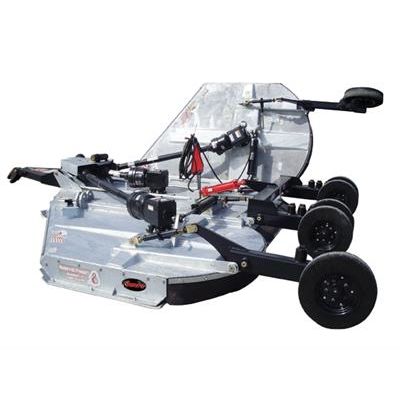

Modern - 15` Raptor Cutters
Cutting Width: 180”. Transport Width: 90” . Overall Width: 187”. Overall Length: 180”. Cutting Height: 2”-15”. Blade Overlap: 6”.
Most popular related searches
- Wing Lift Hydraulics: Standard
- Wing Flex: 90° Up/22° Down
- Jackstand: Standard
- Hitch: Swivel Clevis
- Blade Carrier: Pan Stump Jumpers
- Horsepower Required
- (min): 60 hp
- Main Gearbox or Divider Box*: 255 hp
- Outboard Gearbox or Center & Wings*: 210 hp
- Output Shaft Diameter: 2-3/8” or 2”
- Cut Capacity: 3-1/2”
- BLADE TIP SPEED
- Main or Center:
- 540 - 15,268 FPM
- 1000 - 15,072 FPM
- Wings:
- 540 - 15,016 FPM
- 1000 - 14,996 FPM
- DRIVELINE SIZE
- Main: Cat. 5 Constant Veloc.
- OUTBOARD CENTER OR WINGS
- Cat. 4 w/Slip Clutch
- Deck Thickness: 3/16”
- Side Skirt: 1/4” x 10 1/4”
- Replaceable Skid Shoes: Standard
- Safety Chains: Standard (Front & Rear)
- Weight (Approx): 6500 lbs.
- Standard Tires: Laminated 600 x 9
- Dual Wingwheels: Option
- Hydraulic Level Lift: Option
- Deck Rings to Protect Deck: Standard
- * Gearbox ratings based on field performance.
- ** The Galvanized gloss level could vary from unit to unit.
