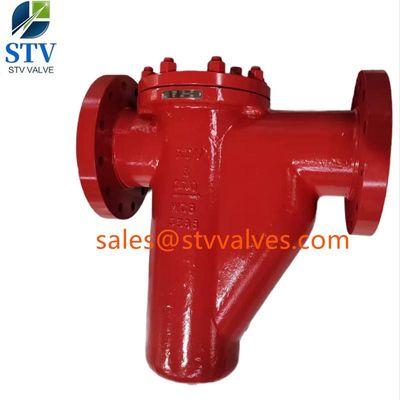

STV - Model BS41H-1500LB -1500LB Cast Steel Basket Strainer, ASTM A216 WCC,2 IN,RF END

The basket type strainer is designed according to ASME B16.34 standards, with a WCB body and a nominal size of 16 inches. It is classified as Class 1500 and features RF Flanged ends for connection. The face to face dimensions adhere to the manufacturer’s standard specifications, ensuring quality and precision. Test and inspection procedures are conducted in compliance with API 598 regulations, maintaining the highest standards of performance and safety.

Basket Strainer
Brief introduction:
The strainer may be used on all types of pipelines to collect granulated foreign substances and contaminants collected. It can improve the clearance in the medium, and prolong the life of valves and other equipments. It is suitable for water, petroleum and steam.
Main part & material
Body:Carbon Steel
Mesh: stainless steel
Technical Specification
Nominal diameter:15~500mm
Nominal pressure:0.6-5.0Mpa
We supply cast and welded type basket strainer
1) Sizes: 1/2 – 24″
2) Pressure rating: 150lb, 300lb, 600lb,900lb,1500lb
3) Suitable temperature: -196oC – 600oC
4) Suitable medium: Water, gas, oil, steam etc.
5) Body material: A106/WCB, WCC, WC6, WC9, LCB, LCC, SS304/CF8, SS316/CF8M, 304L/CF3, SS316L/CF3M
6) Screen: Stainless steel (SS304/SS316)
7) End connection: FF, RF, THD, BW
8,Form of inlet/outlet:Flange/Inner wire/Outer wire/Quick installation
9,Form of cover compression:Bolt/Quick bolt
10,Suitable viscosity(cp):1-30000
11,Form of basket:Punching mesh/Single-layer mesh/Composite mesh

Description
Design: ASME B16.34.
Material: ASTM A216 WCC.
Nominal size: 2 Inch.
Nominal pressure: Class 1500 LB.
End Connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 – 48 Inch (DN15 – DN1200).
End connection: BW, Flanged.
Pressure range: 150 – 2500 LB (PN16 – PN420).
Working temperature: -196℃ – +573℃.

Product Name
1500LB Cast Steel Basket Strainer, ASTM A216 WCC,2 IN,RF END
1. Material
WCC
2. Size
2”
4. Port
Full Port
5. Working Pressure
1500LB
6. Connection Ends
RF
7. Working Temp.
-29~425ºC,
8. Suitable Medium
Water, Natural Gas, Oil and some corrosive liquid
9. Operated
/
10. Inspection & Testing
API 598
Shipment

Delivery Time
30 Days
Package
Standard Exporting Plywood Case
Shipping Port
Ningbo/Shanghai, China
Shipping Terms
Exw, FOB, CFR, CIF, etc.
Payment Terms
T/T, Western Union, PayPal, etc.

30% prepayment, 70% balance paid before shipping
Country of Origin
Wenzhou city, China
Production Capacity
6000 ton/year
MOQ
1 PCS/size
