STV - 150LB Y Type Strainer
150LB Y Type Strainer, 10 inch , ASTM A216 WCB Body, 40 MESH SS304 Screen, BW End. STV Valve Technology Group Co., Ltd is a professional leader China 150LB Y Type Strainer ,Flange Y Type Strainer,ASTM A216 WCB Flanged End Y Strainer,10 inch Y strainer valve ,40 MESH Y Type Strainer,SS304 Screen Y Type Strainer, BW End Y Type Strainer manufacturer with high quality and competitive price.
Most popular related searches

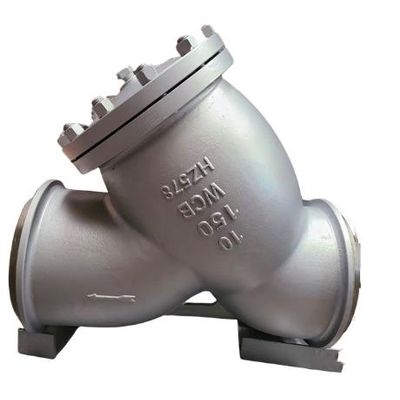

Product name: 150LB Y Type Strainer, 10 inch , ASTM A216 WCB Body, 40 MESH SS304 Screen, BW End
- Design: ASME B16.34.
- Material: ASTM A216 WCB.
- Nominal size: 10 Inch.
- Nominal pressure: Class150 LB.
- End Connection: BW.
- Face to face: ASME B16.25.
- Test and inspection: API 598.
Product Range:
- Body material: Carbon Steel, Stainless Steel, Alloy Steel.
- Normal diameter: 1/2 – 48 Inch (DN15 – DN1200).
- End connection: BW, Flanged.
- Pressure range: 150 – 2500 LB (PN16 – PN420).
- Working temperature: -196? – +573?.
