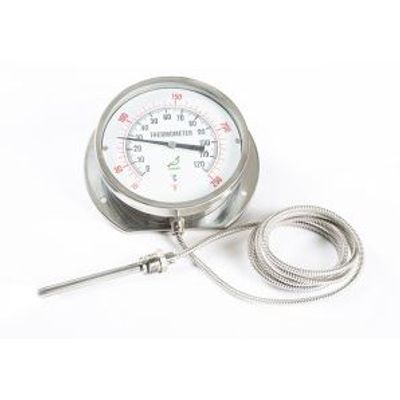

QualityWell - Model 600RF12122 -150mm Bottom Connection Remote Reading Thermometer
Type: Remote Reading Thermometer. Dial Size: 6". Case: SS 304 stainless steel. Lens: Glass. Bezel: SS 304 stainless steel, detachable. Pointer: Aluminum. Stem OD: 10mm or customized. Stem Length: 150mm or customized. Connection: Bottom connection,rear flange. Thread: 1/2"NPT sliding. Accuracy: +/-2%. Brand: QualityWell (OEM & ODM are welcome.). Range: 0/120 C&F (customized). Capillary length: 3000mm or customized. Oil filled: Yes. Packaging: Shakeproof. Enclosure Rating: IP65. Standard: ASME B40.200-2008. Field: The remote reading, Shockproof requirements, refrigeration plant, marine machinery, etc.. Certificate: ISO9001:2008. MOQ: 100 pieces.
- Categories: Remote Reading Thermometer
- Trademark/Brand: QualityWell
- Model: 600RF12122
- Thread: 1/2“NPT
- Name: Gas filled Thermometer, Capillary Thermometer
- Dial Size: 6“
- Case: SS304
- Lens: Glass
- Bezel: SS 304,detachable
- Pointer: Aluminum
- Stem OD: 10mm
- Stem Length: 150mm
- Capillary length: 3000mm(Customized)
- Terms of Payment: L/C, D/A, D/P, Western Union
- Update Time: Jan 27,2026
These series of thermometers are designed for remote reading of the temperature, with capillary tubing between case and sensing bulb. The entire thermometer is filled with an inert nitrogen gas offering fast response. The material is all Stainless Steel 304.
