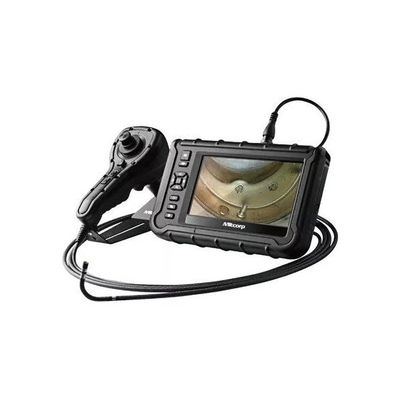

USA BorescopesModel 2000J-2.8-1500 -1.5m Length Joystick Articulation – 2.8mm Videoscope

SHARE

This small diameter borescope is ideal for inspections requiring a small camera with articulation. This micro borescope offers a surprising HD image quality with joystick articulation. The responsive joystick articulation provides 360 degrees of viewing capabilities. Although, at present, this system does not offer an interchangeable side view tip, the articulation allows the inspector to view a full range of the borescope inspection area. The reinforced metal sheathing of the borescope sonde provides confidence in the durability and performance of the borescope camera. Most borescope inspectors are concerned about the durability of the inspection camera as they know that downtime and loss of uptime will adversely affect the production process. The slim borescope design of the micro borescope allows for seamless inspections of the hard-to-reach areas. In addition, this mini borescope’s compact bending section provides an in-depth inspection of the most challenging areas.

Most popular related searches
  • Excellent Image Quality with Optimized Optic System & HD CMOS Sensor
  • High Resolution Picture/Video LCM Output System
  • Smooth Joystick Control and Lock System
  • Tungsten Tube
  • Temperature Warning
  • 7″ LCD Monitor
  • Rigid Sleeve
  • Display: 7″ LCD, Resolution 1024×600
  • Power Supply:
    • AC Adapter: 100V~240V, 12V 2.5A, 50-60Hz
    • Battery: Rechargeable Li Battery 3.6V 900mAH; approximate operation time: 5 hours; charging time: 4 hours
  • Video Output:
    • HDMI: TYPE D; HDMI 1.4 transmitter with 3D format and CEC support
    • USB: USB TYPE C, supporting USB full-speed and high-speed data transmission
    • Wi-Fi: IEEE802.11B/G/N
  • Operating Temperature:
    • With battery power: 0~40ºC
    • With AC Adapter power: 0~35ºC
    • Drop Resistance: 1m
    • Relative Humidity: Max 95% non-condensing
    • Dust Proof/Water Proof: IP57
    • Insert Tubes Interchangeability: 6.0mm HD series; 3.9mm series
  • Articulation Probe Specifications:
    • Joystick Console Dimensions (WxDxH): 139.4 x 193 x 84.2mm (w/o SR and insert tubes)
    • Net Weight: 2m: 700g / 3m: 866g (approximately)
    • Joystick Console Buttons: Brightness+; Brightness -; Snapshot/Record
    • Lock and Move: Lock/unlock switch on console
    • Probe Head Diameter: 2.8mm
    • Probe Length: 1.5m
    • Probe Head Material: Stainless steel
    • Probe Material: Tungsten braid
    • Probe Head Length: 10.1mm
    • Direction of View: Front view
    • Field of View (FOV): 120º
    • Depth of Field (DOF): 3mm ~ infinity
    • Illumination: Front LEDs
    • Articulation Angle (up/down/left/right): full ways ≥ 110º
  • Operating Temperature:
    • In air: -10~80ºC
    • In water: 10~30ºC
  • Dust Proof/Water Proof
    • Joystick console: IP54
    • Insert Tube: under water 1m for 30 minutes
  • Relative Humidity: Max 95% non-condensing
  • Liquid Resistance: Operable when exposed to machine oil, light oil or 5% saline solution
  • Software Features:
    • Image Features: Digital zoon 3X, 10 steps brightness control
    • Sharpness Control: Clarity On/Off
    • Annotation: 10 text annotation (24 characters)
    • Timestamp/Watermark: for snapshot/video recording (on/off)
    • Image Management: User define pic / video folder available
    • On-Screen Display Functions: Light boost, light off, mirror, compare, wireless, particle free, dual view, light direction, negative, auto white balance
    • White Balance: Manual adjustment (default, warm, cold, custom)
  • Recording Management Specifications:
  • Storage Media: SDHC, up to 32G
  • Overlay: YY/MM/DD h:m, battery capacity
  • Thumbnail Image Display: 9 grids album mode
  • Still Image:
    • Resolution: 800×800
    • Recording Format: .jpg
  • Video:
    • Resolution: 400×400
    • Recording Format: .mov / H.264
    • Audio Input: Built-in microphone (on/off)
    • Frame Rate: 30FPS
  • Accessory Specifications:
    • HDMI Cable (AV-out): 1.8m, HDMI 1.4a, D TYPE
    • USB Cable (data transfer): 1m, TYPE C to standard TYPE A
    • USB Charging Cable: 1m, USB-DC jack (for power bank)
    • SD Card: 16G
    • DC Power Adapter: 100V~240V, 12V 2.5A 50~60 Hz
    • Interchangeable Side View Tip: 6.0mm
    • Shoulder Strap: Polyester
    • Hand Strap: Polyester
    • Sun Visor: Steel/Plastic
    • Ground Wire: 3m with DC jack / PC in / clamp
    • Insulation Cap: Ø20mm, 90mm rubber
  • Rigid Sleeve:
    • Grip Material: Rubber/aluminum/plastic
    • Tube Material: Stainless steel
    • OD: 6mm / ID: 5mm protection ring; OD 8mm extension joint ring; OD 10mm
  • Trolley Case: HDPE EVA with storage reel
