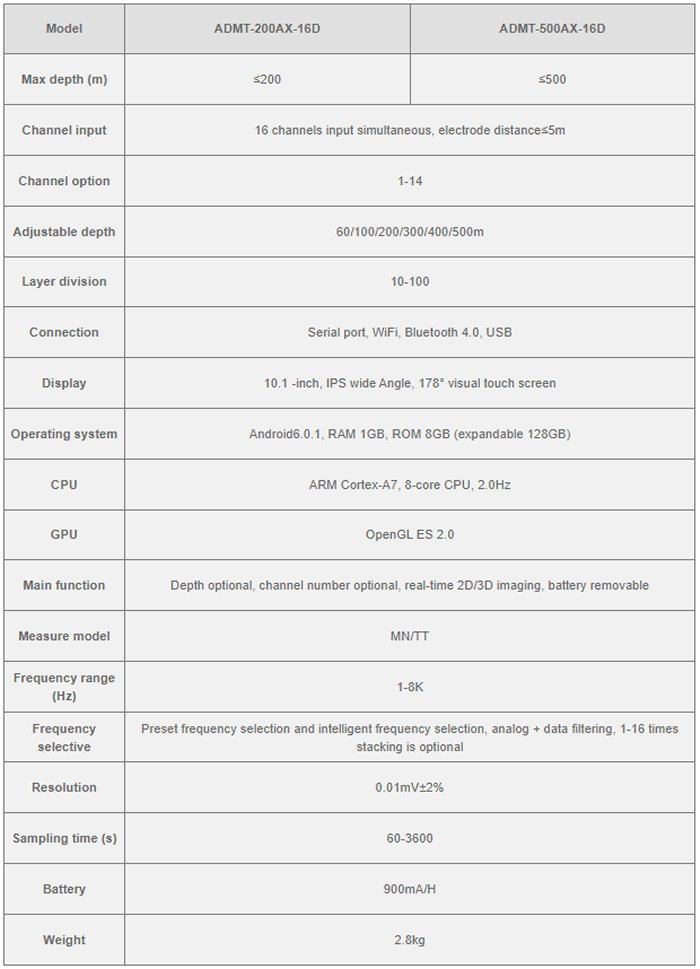

Aidu - Model ADMT-200AX-16D, ADMT-500AX-16D -16 Channel MT Electromagnetic Geophysical Equipment

The 16-channel high-density MT electromagnetic method instrument is a real-time imaging intelligent physical probe jointly developed with the Guilin Institute of Technology Hydrogeological Survey. 16 channels of simultaneous input measurements are used to obtain a stable field source, which not only solves the problem of the natural electric field changing at any time, but also avoids the errors caused by moving the electrodes several times in the same profile and solves the shortcomings of single-channel instruments with different repeated measurement data profiles.

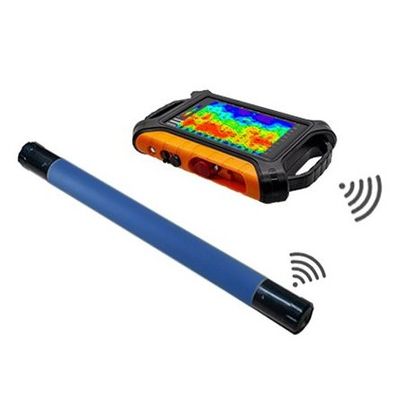

The 16-channel high-density MT electrometer is equipped with a 10.1" Android touch screen for real-time imaging as standard, and the instrument screen, mobile phone screen and computer screen are interoperable. 1-14 measurement channels are available, as well as optional wireless probes or Aidoo Golden Band, which can switch between MN electrode and TT probe measurement modes, making field operation very convenient and widely recognised by customers.

It has been listed to obtain several invention patents (Patent No. ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9) and has been recognized as a high-tech achievement transformation project in Shanghai.

Main uses:It is widely used for detailed and census exploration of all kinds of metallic and non-metallic ores, for detailed and census exploration of groundwater search, for environmental protection investigation, power design, engineering exploration, geothermal exploration, exploration of coal mining void areas, geological disaster investigation, etc.

49 Years Research and Development

Stable       Accurate

Free upgrading at the original price after purchasing within six months

ADMT series products use the earth`s natural electromagnetic field as the working field source to study the electrical structure inside the earth. According to the principle that electromagnetic waves of different frequencies have different skin depths in the conductive medium, the earth`s electromagnetic response sequence from high frequency to low frequency is measured on the surface of the earth. , to study the difference in electrical changes of underground geological bodies at different depths, and to determine the occurrence state of underground geological bodies

Since the development of the short-wire D75 electrical method in 1973, we have been working hard. This high-density MT geophysical probe uses 16-channel simultaneous input measurement to obtain a stable field source, solves the problem of natural electric field changes at any time, and solves repeated measurement data. The shortcomings of different profiles, combined with light and efficient, precise and intelligent and advanced Internet of Things technology, are well received by new and old users.

CUSTOMER USE EFFECT

Burma Maoqi open-pit mining exploration
