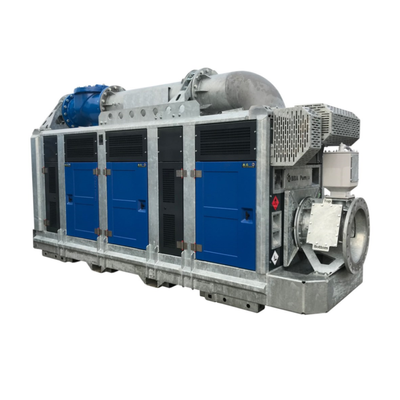

BBA Pumps - Model BA400G D540 -16-Inch Diesel Driven High Flow Pump for Flood Control and General Use
The BA400G is a 16-inch diesel driven high flow pump for flood control and general use. The centrifugal pump is fitted with its own MP100 priming system and is therefore dry self-priming. A modern and variable speed diesel engine meets the highest emission standards for use worldwide. The state-of-the-art sound attenuated canopy is equipped with all possible safety features for carefree pumping. The discharge pipe runs as standard over the roof, making it very convenient when installing the piping system.
- For pumping dirty water
- Pump flow up to 3200 m³/h
- Impeller with 100 mm free passage
- High pump efficiency for low operating costs
- 4 years BBA Pumps limited warranty
Centrifugal Pump
The BA400G is a 16-inch BBA Pumps centrifugal pump with an axial flow impeller. The large solids handling is unparalleled at 100 mm, making this a real dewatering pump. Best-in-class pump efficiency and an excellent NPSH curve lead to an ultra-performing unit. Other standard features are large inspection covers, suction and pressure gauges and a heavy duty bearing frame with an extra oil chamber for dry running.
Priming System
Featuring a fully automatic priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. A genuine BBA Pumps priming system includes a diaphragm vacuum pump, a check valve on the discharge side and a float box for air-water separation on the suction side.
Diesel Engine
The pump is driven by a clean and economical Volvo Penta diesel engine. The electronically controlled variable speed engine meets the stage V emission requirements. Low fuel consumption and minimal noise emissions are key features of this engine.
Sound Attenuated Canopy
BBA Pumps canopies are known as the most innovative and robust in the world. Pumps in sound attenuated canopies are super quiet, safe to use and protected against the elements. The fully self-contained unit features a composite fuel tank and fluid containment system. To aid mobility, the forklift pockets and lifting eyes are fitted as standard. The discharge pipe runs over the roof and is fitted with a rotary discharge flange.
- Discharge x Suction: 16" x 20"
- Max. flow: 3200 m³/h
- Max. head: 25 mwc
- Free passage: 100 mm
- Priming system: MP100 (100 m³/h)
- Engine: Volvo Penta
- Max. speed: 885 rpm
- Fuel consumption at BEP: 35 l/h
- Canopy: M14-40
- Sound level: 65 dB at 10 m
- Dimensions L x W x H: 5285 x 1450 x 2514 mm
- Dry weight: 6300 kg
- Warranty: 4 years
