ErtelAlsop - Model EUS Series -16" Plate and Frame Filter Press
FromErtelAlsop
The EUS Series is the most versatile of all the models in the ErtelAlsop line of plate and frame filter press systems. With filtration area ranging from 2.8 square feet to 142 square feet, an EUS can be utilized in virtually any application.
Most popular related searches
plate frame filter press
frame filter press
frame filter
filter press
filter plate
tube pump
pressure gauge
gaskets

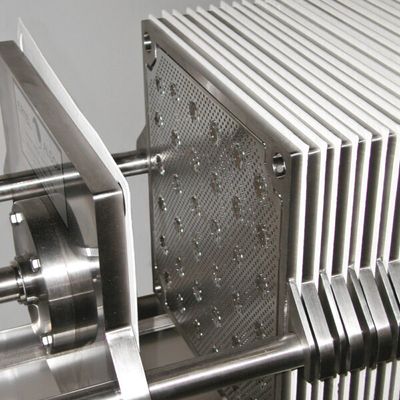

The EUS plate and frame filter press is equipped with BioClean Filter Plates as standard. This eliminates all screws and internal threads, which reduces cleaning and sterilization time.
As with all of our internally ported plate and frame filter press assemblies, gaskets and washers are not required.
- 316L SS
- BioClean Outlet Plates
- Internal Ports
- 1 inch Tri-Clamp Fittings
- Handwheel Closure with Hydraulic Hand Jack Assistance
- Cart-Mounted
- Fifty (50) pad capacity expansion
- Variable Frame Thickness
- Dividing Heads
- Blanking Head
- Weld-Free Plate Design
- Thorough Wash Capability
- VaporMaster Enclosure
- Diamond Configuration
- Hydraulic Closure
- Cake Recovery Carts
- Pressure Gauge
- Tubing
- Pump
- Motor
- Standard Height: 1 m (39.39 in)
- Standard Width: 0.6 m (23.62 in)
- Range of Length: 1.0 – 4.0 m (39.4 – 157.5 in)
- Plate Dimension: 406 mm (16 in2)
- Ports: 4 Internal
- Area per Filter Sheet: 0.132 m2 (142 ft2)
- Cake Volume – 12.5 mm Inlet: 1.52 l (0.40 gal)
- Cake Volume – 25 mm Inlet: 3.39 l (0.90 gal)
- Cake Volume – 37.5 mm Inlet: 5.21 l (1.38 gal)
- Cake Volume – 50 mm Inlet: 7.27 l (1.92 gal)
- Batch Size: Up to 25,000 l (6,604 gal)
- Flow Rate: Up to 190 lpm (50 gpm)
*All dimensions are for reference only.
