HATHORN - Model MAGNUM M18 -1.68 Inch Sewer Camera
HATHORN Line, M18 Sewer Inspection Cameras are designed particularly for those who are looking for truly heavy-duty inspection systems with an advanced video component and sturdy push rod for everyday usage. Well built and thoroughly tested the M18 gives you a great experience you will be satisfied with.
It features a 1.68" self leveling camera that is always right side up. The camera is built tough from stainless steel, contains 20 HI LEDs for great illumination and a light-sensitive video sensor (0.5 lux @ F2.0). To protect against any damage a video chip is protected by scratch-resistant sapphire glass. This allows you to easily inspect laterals and main lines up to 8" in diameter and go through 3" P-Traps.

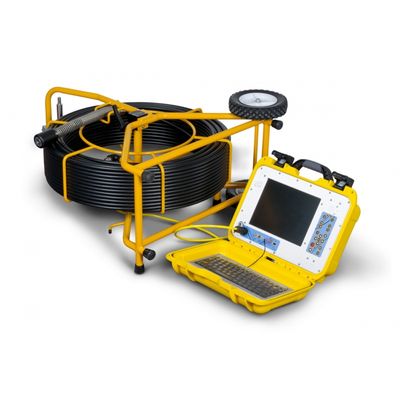

The sewer inspection camera system includes two main parts:
The first one is the durable reel with push cable lengths up to 400 feet (120 meters). One of the most sensitive parts of any pipeline camera is the push rod. The M12 stands out among other similar inspection systems because it features a Kevlar braided probe. Kevlar is commonly employed for making bulletproof vests and is known for its durability. Due to this technology, the reels are significantly more durable compared to regular systems.
The camera head is equipped with 20 High-Efficiency LED lights. It provides superb illumination of the inspection area and a bright, clear, and rich image. The camera head is easily replaceable, and if you break or damage it during the inspection, it can be easily fixed.
The camera is completely IP68 waterproof and allows to inspect under 6 bar pressure in freshwater (200ft). The M12 inspection reel also comes with a built-in transmitter that operates at 512hz. You can use any standard 512Hz receiver to locate the camera head or order one from us (optional).
The second part of the set is the imaging hub. The MAGNUM M12 has a 12” incorporated color widescreen monitor with a recording processor (10.4" screen for the weaterproof option). You can save your data directly to a USB drive. Recordings are made in a high quality H.264 format. You can add a voice recording (via a built-in recorder) to accompany your data or/and you can add up to 16 pages of typed text of comments.
An on-screen counter of the inserted footage, adjustable lighting control, rechargeable battery that lasts 2 hrs on a single charge, and click touch controls are among additional features.
New! The specially designed weather-proof monitor is also available on request. All openings are tightly sealed to keep out moisture, and this system has a moisture absorbing barrier between the sidewalls and the internal electronic components. This option is extremely convenient and recommended for harsh working conditions in either hot or cold climates.
- 1.68" Self Levelling Camera Head
- 20 High-intensity LEDs
- 12" Daylight Readable Monitor
- Waterproof Camera: IP68
- Click Touch Controls
- Record to USB Drive
- On Screen Footage Counter
- Adjustable Lighting Controls
- Voice Over Recording (Built In)
- Rename Files on Stick After Recorded
- Sewer Camera built-in 512Hz Sonde
- 2 Hour Battery with Built In Charger
- Kevlar Reinforced Push Rod
- 3” P-Traps and Up
- Slip Brake Handle
- Upgrade to Weather Proof DVR available
- TECHNICAL SPECIFICATIONS: Push rod with 1.68" self leveling camera head attached
- Electrical transfer: 6 pole slip ring
- System Dimensions (LxWxH): 16.5"x 5"x 24"
- Weight with 200ft rod: 35 LBS
- System reel Housing Material: Powder coated steel tube frame
- Pressure: Waterproof IP68
- Camera diameter: 1.68"
- Camera housing: Stainless steel
- Sensitivity: 0.5 lux @ F2.0 68 deg
- : 470 lines
- Sensor type: 1/4 color CMOS
- Iris: Auto
- Illumination: 20 High-intensity LEDs 30,000mcls
- Max push rod distance: 400ft 1/2"diameter rod
- Standard 512Hz inline sonde: YES
- Min pipe diameter : 2" , 3"plastic P-traps
- Max pipe diameter: 8"
- CONTROLLER (Magnum M12):
- Housing: Housing ABS plastic case (yellow)
- Keyboard: Standard, Splash proof
- Power source: Std 2 hour internal battery
- Metering: Std Meter and Footage counter
- USB recording: MPEG4
- RCA: video/audio out
- Display: LCD 12" (10.4" for weaterproof option) daylight readable
- Zoom: 8 X
- * Controllers with Built-in memory are available
Monitor DVR Box, 12V AC Power Adapter, Push Rod with Camera Head on Reel, Connection Cable, User`s Manual.
