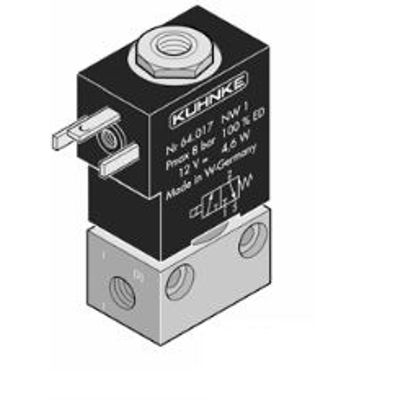

H-Kuhnke - Model 64 Series -16mm Brass 2/3 Way Miniature Solenoid Valve
The Series 64 solenoid valve is available for in-line, direct or manifold mounting. Its modular construction allows for maximum utilisation of space. Accessories include connecting plugs, surge suppressors and manifolds. All standard valves feature a solid brass housing, buna N seals, encapsulated coils and are mountable in any position.
Valves are available in 3 mounting configurations. In-line (body ported) valves are mounted using (2) M3 threaded holes at the base, or via through body holes. Manifold mounted valves can be used with Kuhnke accessories or can be mounted on custom manifolds or equipment. A direct mounted valve is available for mounting in 1/8 ports on cylinders or for piloting larger valves.
The Series 64 valve is available with 3 orifice sizes each with different flow values and maximum air pressures. A low power DC coil version (1.8 W) has a 0.5mm orifice and is designed for use with electronic equipment.
In addition to general purpose use, Series 64 valves are designed for the special requirements of medical, dental and laboratory equipment. Custom designs available
