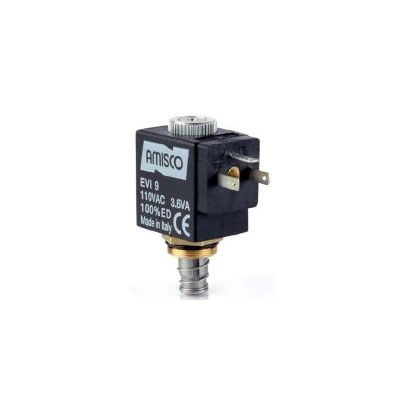

AMISCO - Model EVI 9S -17 mm Solenoid System
The EVI 9S system by AMISCO includes a wide range of solenoid operators designed for pneumatic valves. All solenoids of this system have the guide tube with a diameter of 8 mm and the plunger with a diameter of 7 mm. The system is designed for use with air.
COIL
The coil is available with different electrical terminations. Types, power and other characteristics are described in the following pages. All coils feature:
- heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
- class H wire 200°C according to IEC 317-13
- built-in magnetic yoke made by low carbon iron
- flux ring for increased performances
- encapsulation with high quality specially designed glass filled nylon.
The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65 (with connector) or IP67 for the flying lead version. The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in different ambients with high humidity, please, take contact with Amisco.
OPERATOR
Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications. The guide tube is made with brass (stainless steel is possible upon special agreement). The plunger is normally equipped with NBR rubber seals. Other materials like FKM are available upon request. The armature assembly is designed for more than 50x106 cycles.
