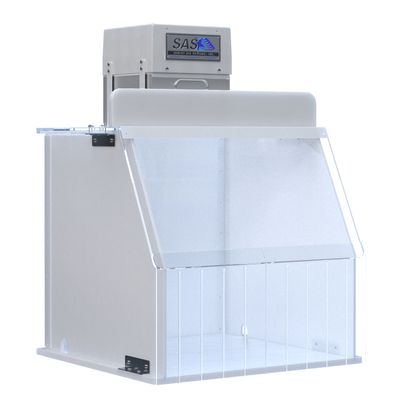

Sentry Air Systems - Model SS-218-PCR -18" Portable Cleanroom

FromSentry Air Systems, Inc.

SHARE

The 18” Wide Portable Clean Room offers an ISO Class 5 cleanroom to help protect the process from outside contamination and particulate. This system utilizes a vertical laminar airflow pattern and a dual-stage filtration to create a positive-pressure environment by supplying filtered air to the workspace.

Most popular related searches

portable cleanroom

dual stage filtration

ISO 5 cleanroom

optical inspection

IV infusion
Parts inspection
Optics/laser assembly
Ttissue culturing
Data recovery
Stem cell therapy practices and
Other medical applications

Includes: anti-static vinyl curtains and LED light
Optional: removable spill tray
Standard Sizes: 12”, 18”, 24”, 30”, and 40”
Provides up to an ISO Class 5 Clean Room
Highly portable and lightweight
Quiet operation
Reliable, low-maintenance operation
Long filter life
Simple “no tool” filter change

Hood Dimensions (D x W x H)
- Outer: 18.5” x 20” x 19”
- Interior: 18” x 18” x 18”
- Access Area: 8” x 18”
Hood Material
- Sides: 0.25” white acrylic
- Base: 0.5” white high-density polyethylene
- Top: 0.5” clear polycarbonate
- Front Window: 0.25” clear polycarbonate
Blower Dimensions: 7.5” L x 10” W x 8.5” H
Blower Material: 0.1875” acrylonitrile butadiene styrene (ABS)
Weight (approximately): 35 lbs.
ISO Classification: Up to ISO Class 5
Air Volume (approximately): Up to 111 CFM (with HEPA filter media)
Electrical: 115/1/60, 0.3 amps; 8’ grounded power cord with NEMA 5-15P plug
Sound Level (High at 3’ from inlet): Approx. 59 dba
Warranty: 6 Month Warranty on Fan/Motor. 24 Month Warranty on other parts.
