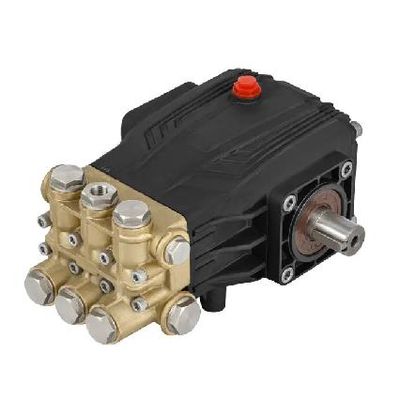

Brilliant - Model JPB-N0818 -180 Bar High Pressure Triplex Plunger Pumps
Plunger Pumps are designed for a wide variety of moderate pressure washing applications.
Most popular related searches
high-pressure plunger pump
high-pressure triplex plunger pump
plunger pump
high-pressure pump
triplex plunger pump
poppet check valve
safety performance
brass valve
pressure washing
check valve
- Manifold: Forged Brass: Strength and no porosity equals long life. Higher hydrostatic pressures, safety, performance
- Checking valve: Stainless steel poppet valve and spring ,brass valve seat,easy to mantain
- Crankcase: Foundry& oxidation technology,biggish heat sink with good heat dissipation
- Plunger:
- Solid ceramic plunger
- SST limit bolt/long service life
- Connecting rod:
- Aluminum alloy material
- High load intensity,long service life
- Seals: U-sgaoed Buna-N maerial,increased pump performance and seal
- Max GPM: 2.1
- Max L/Min: 8
- Max PSI: 2610
- MaxBar: 180
- Power KW: 3
- Plunger Dia mm: 18
- Stroke mm: 7
- Inlet: 1/2" F
- Outlet: 3/8" F
- Max Temp: 50?/122?
- RPM: 1450
- Shaft Size: 24mm
- Shaft Version: N
- Shaft Type: Solid
- Shipping Weight(kg): 7
- Oil Type: SAE 15W/40
