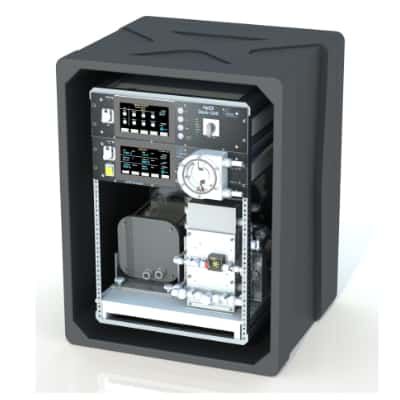

OceanPack Cube - 19” Autonomous Measuring System
The OceanPack™ 19” CUBE is a mobile “Underway” or “FerryBox” autonomous measuring system. The OceanPack™ CUBE includes everything to run unattended and measure water parameters: power supply, data logger, water system and space to include optional sensors. The CUBE system is based on the OceanPack classic rack, but is a mobile, lighter and smaller version. Even though the system is compact, additional sensor can be integrated. Robust against sediments or bio-fouling, just clean with tap water. Optionally, the automatic cleaning can be connected as an external additional device. Quick-connect water tube connections without the need to use tools. Efficient de-airing with our Debubbler mBubbler®. Space to install additional sensors into the Debubbler to measure true water values in one water tank.
- Rack system: 19” 600 x 600 x 1000mm (typ.) 70kg with, 40kg without flight-case enclosure
- Construction: 19” fix frame, components can be simple removed
- Water supply: By external or internal sea water pump
- 1-20 l/min, max. 3 bar (best 8 l/min, 0.5 Bar)
- Optional Motor ball valves for inputs
- Optional bypasses with flow-meters for sensors
- Debubbler: mBubbler® to install additional sensors
- Coarse filter: Inlet, easy and fast to clean: 30sec
- House-keeping: Water flow and pressure, corrosion free
- Deck-Unit: NetDI® ARM controller and data logger
- 7” touch screen with quick-look data
- and simple intuitive configuration tools
- Sample rate: Typ. 1Hz, configurable
- Processing: Calculation of all values in real-time
- IEEE Double Precision
- Per-qualification measurement flags
- Storage: Industrial SD card 8GB (up to 32GB)
- Simple ASCII NMEA-0183 data format
- Interfaces: Up to 8 serial interfaces
- RS-232/485, galvanic isolated
- Special protected interfaces to remote modules
- Up to 1 Ethernet / LAN connection – e.g. DSHIP
- Sensors: Not included
- Download: USB download for memory sticks
- USB firmware and configuration upgrade
- UPS: Uninterrupted Power Supply,
- included into the Deck-Unit
- Power: 230VAC, optional 100VAC to 240VAC wide-range
- Optional 12/24V DC
- Typ. 30W without sea water pump, incl. CO2 sensor
- Typ. 150W with internal circular sea water pump
- New form factor: the 19-inch rack format allows the mounting of 19-inch standard frames
- Touch Screen: the new 7” touch screen enables an intuitive control of the device, comparable to a simple mobile phone. No external screen or keyboard is necessary any more
- New controller unit and data logger technology: NetDI replaces SmartDI. The industrial ARM processor guarantees a stable computer environment according to functional safety guidelines IEC 61508 and highest performance at the same time. We use industrial components only, in order to ensure long-term availability of our product
- Fast data download or upgrades with USB
- New power concept: 24 VDC converter is integrated into the instrument. A new UPS (uninterrupted power supply) allows a save operation on ships or places with an unstable power supply
- Only standards: the simple ASCII NMEA-0183 data protocol is used for storage on the 32 GB SD card and real-time output. The high-precision real-time-clock follows ISO 8601.
- It comes with its own flight case for fast and safe shipping
- GPS receiver and geo-referencing of all data
- Real-time data transfer and alarm services
- OceanView™ DataServer run on a Windows® PC
- External accessible RS-485 Bus extension to connect a wide range of devices such as meteorological sensors, pumps or valves
- Additional sensors, analyzers, water samplers and more on request
