Zhichuan - Model ZCT290K-LCS-H2-77 -2 Axis Inclinometer Sensor with High Precision and Stability
ZCT290K-LCS is a two-axis inclinometer sensor with high precision and stability. The total range is from -90º to 90º, CAN communication.
Most popular related searches
inclinometer sensor
dual axis inclinometer
inclinometer
H2S monitoring
security monitoring
waterproofing
H2S

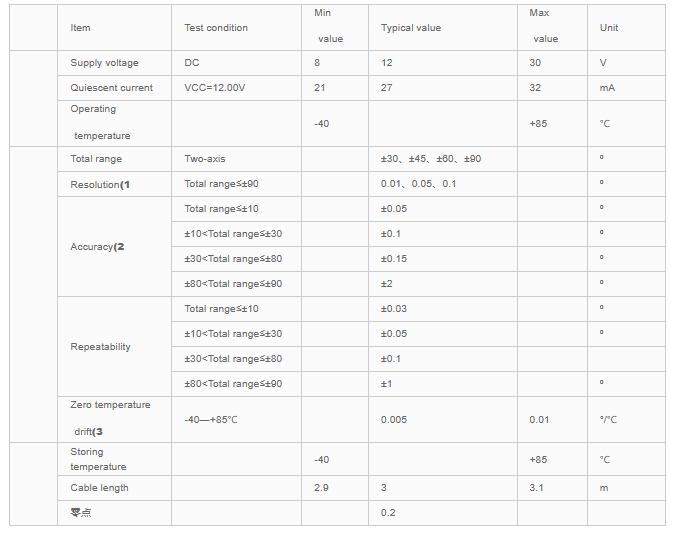

- Product Model: ZCT290K-LCS-H2-77
- Measuring Range: ±60 ° ( ±90 °)
- Output: CAN
- Measuring Axis: Dual Axis
- Accuracy: 0.01°-0.09°
- Application: Machinery
- IP Degree: IP67
- Shell Size: 54 * 44 * 20 mm
- cable_line 3m Waterproof Cable
- High accuracy, high-cost performance,
- Industrial devices entirely, high stability,
- Reliable performance,
- Aluminum casting case,
- Protection grade: IP66
- Wide DC supply, reverse power protection
- Angle measurement
- Security control, monitoring, alarm
- Alignment control, warping control
- Tilt position recorder
